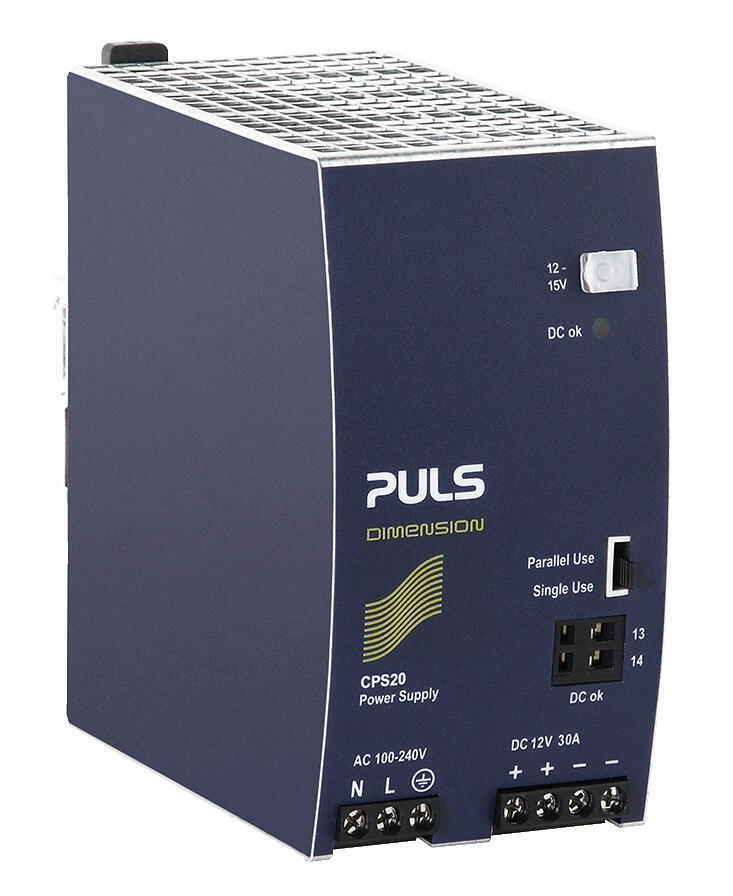

Tápegység 1 fázis, 12VDC Dimension C széria

Active Transient	Igen
Clamp type	Csavar
DC relay output	Igen

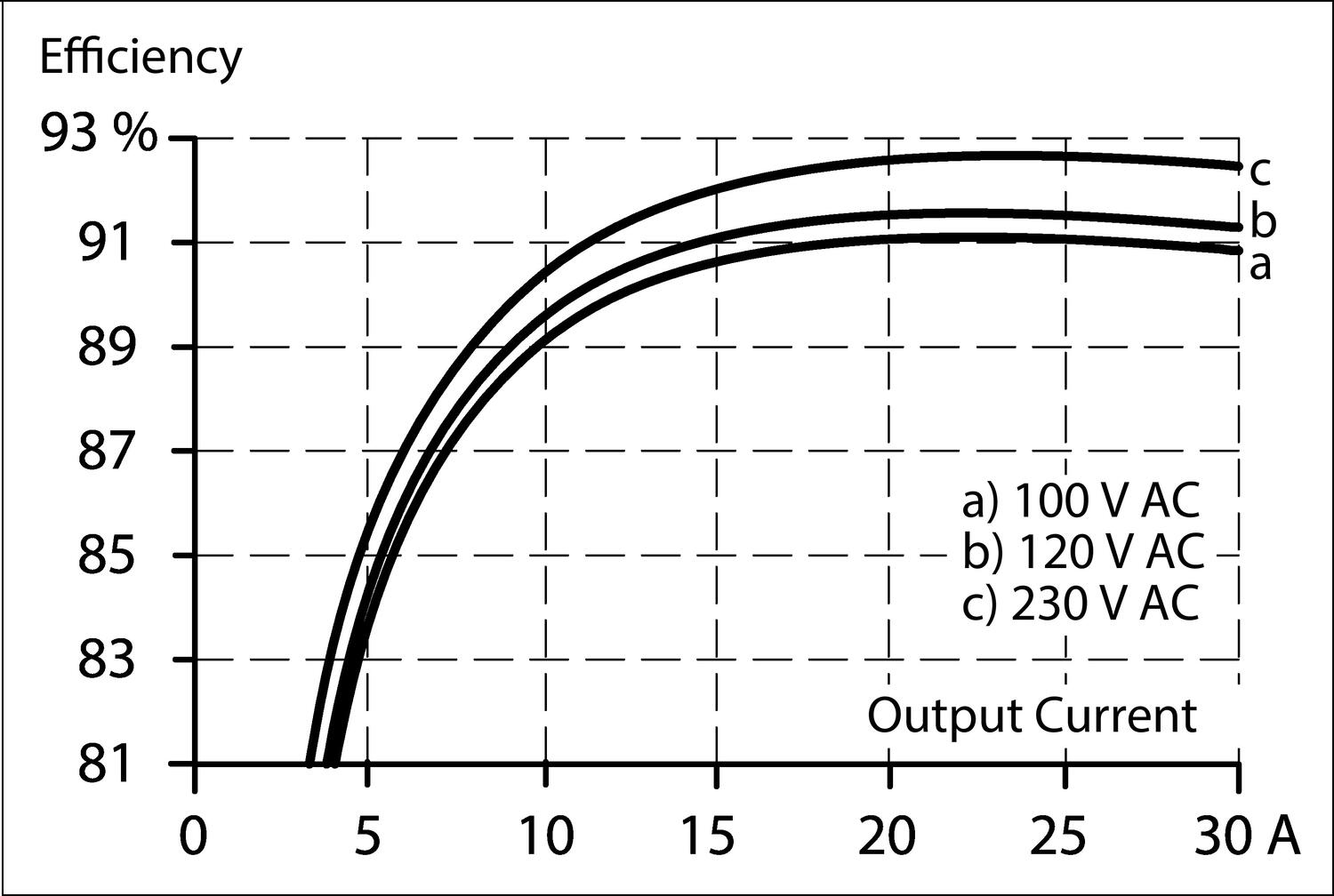

Efficiency At 120 V AC, full load. Typical	91,4 %
Efficiency At 230 V AC, full load. Typical	92,6 %
Efficiency At 230 V AC. Typical	91,6 %
Fázisok száma	1
Hold-up time at 120 V AC, full load. Typical.	35 ms
Hold-up time at 230 V AC, full load. Typical.	35 ms
Input current at 230 V ac typical	7 A
Input voltage AC	100-240 V
Input voltage ac max	264 V AC
Input voltage ac min	85 V AC
Input voltage range	Wide-range
Inrush current at 120 V ac typical	9 A
IP-osztály	IP20
Jóváhagyások	ABS, ATEX, CB, CE, CSA US, cRUus, cULus, GL, IECEx
Lifetime at 120 V ac, full load and +40 ° C	50000 h
Lifetime at 230 V ac, full load and +40 ° C	54000 h

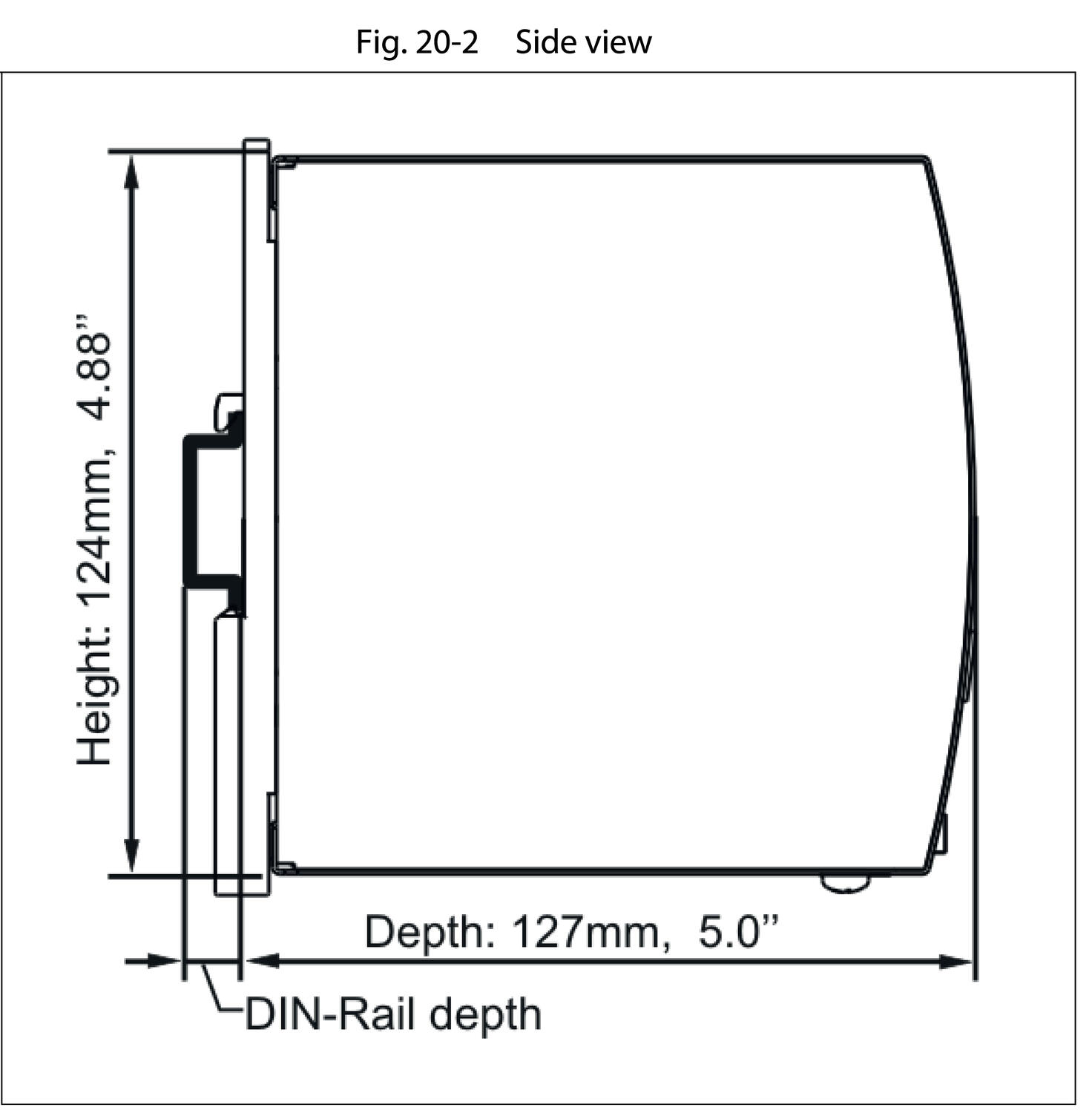

Magasság	124 mm
Mélység	127 mm

MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	554000 h

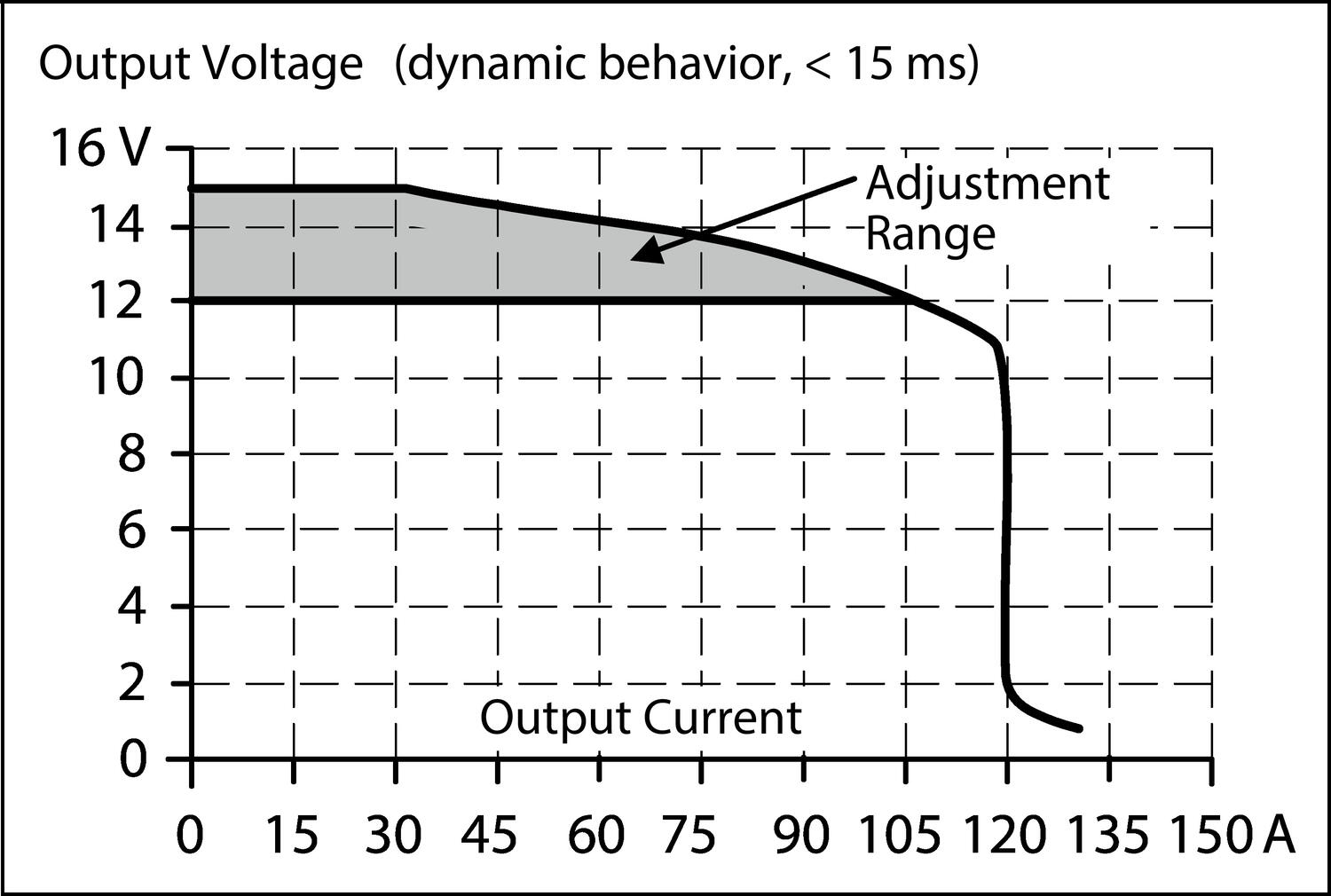

Output Current	30 A

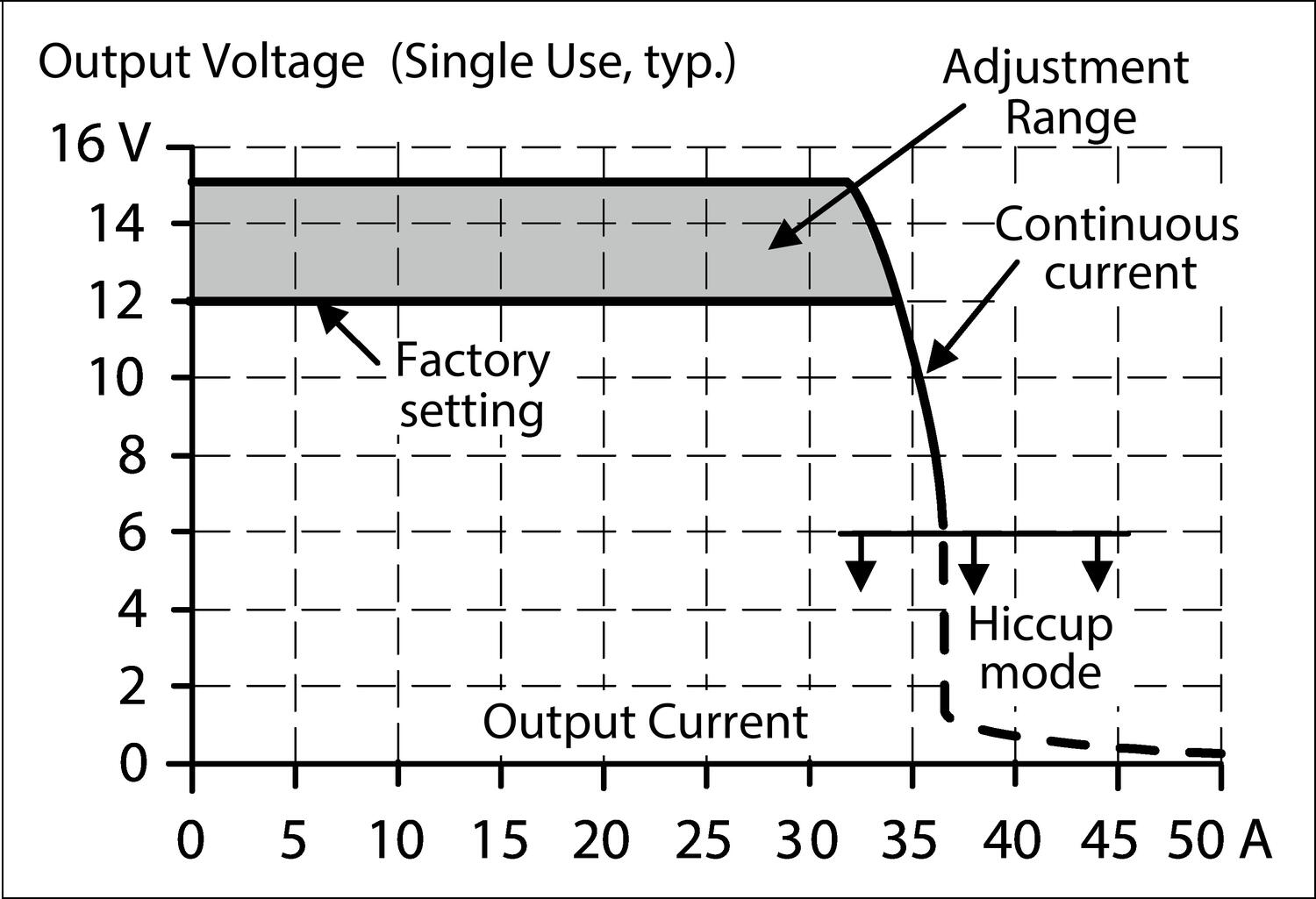

Output voltage	12 V DC
Output voltage max	15 V DC
Output voltage min	12 V DC
Power Consumption At 120 V AC	3,3 A
Power Consumption At 230 V AC	1,8 A
Power Factor at 120 V AC, full load. Typical	0,99
Power Factor at 230 V AC, full load. Typical	0,95

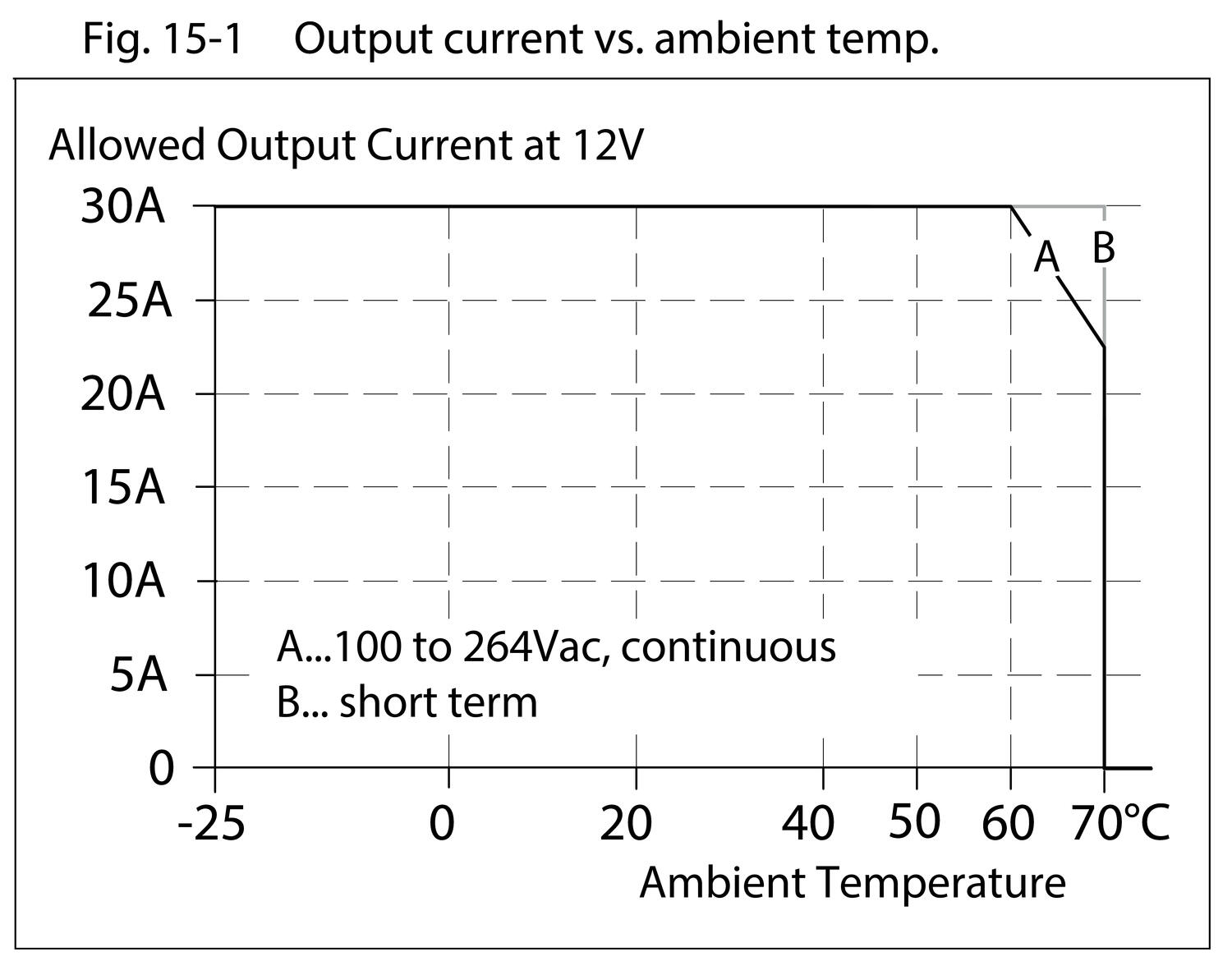

Power Reduction Of 60 To 70 ° C	0,75 W/°C
Ripple. max	100 mV pp
Series	Dimension C
Supply Frequency	50-60 ±6 %

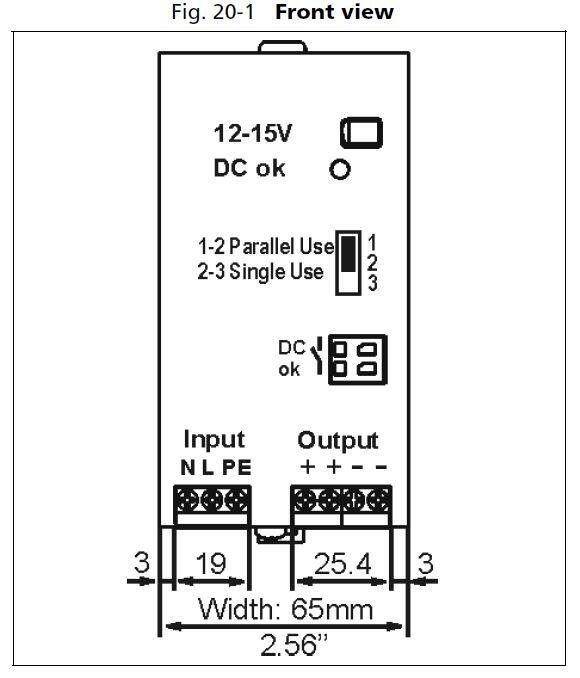

Szélesség	65 mm
Teljesítmény	360 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	1 kg
Védőanyag	Alumínium
