STEGO
Termosztát - FTO 011/FTS 011 széria

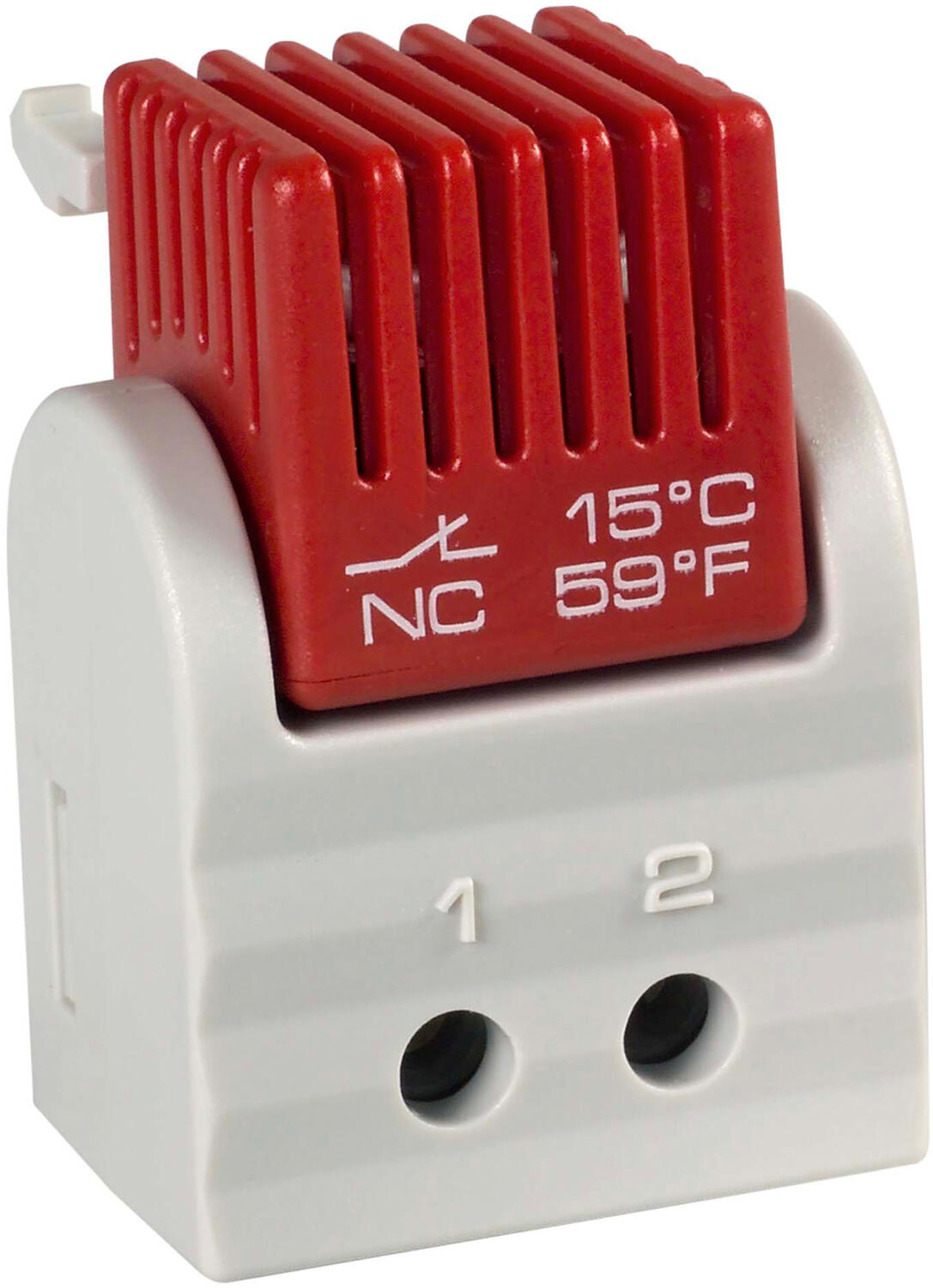

Tamper-proof (Pre-set) Thermostat FTO 011: Normally closed - Contact breaks (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.

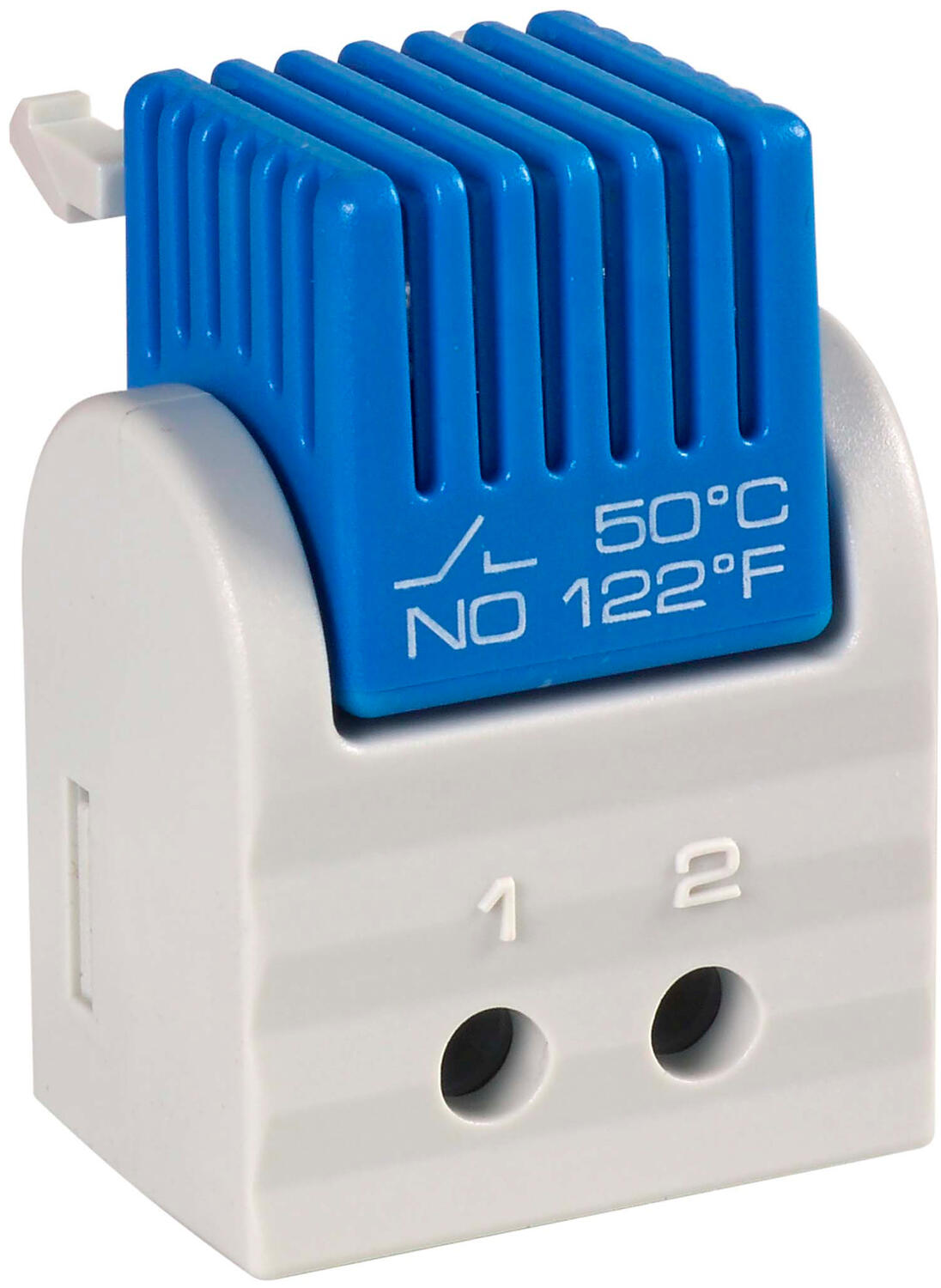

Tamper-proof (Pre-set) Thermostat FTS 011: Normally open - Contact makes(blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
- Kis méret
- Előre beállított értékek
- Egyszerű telepítés
- Innovatív dizájn
Kiválasztott változat
Műszaki adatok
| Control range temperature from | 41 °F |
|---|---|
| Control range temperature to | 15 °C |
| Érintkezési ellenállás | <20 mΩ |
| Hőmérséklet záróértéke, NC | 5 °C |
| Hőmérséklet-alapérték, NC | 15 °C |
| IP-osztály | IP20 |
| Jóváhagyások | CE, CSA, cULus, EAC, EMC, RoHS, UL E164102, VDE |
| Magasság | 47 mm |
| Material Plastic Housing | Műanyag |
| Max. bekapcsolási túláram | 16 A |
| Max. feszültség | 250 V ac |
| Mélység | 33 mm |
| Operational Temperature | -40°C ... +80°C |
| Szélesség | 33 mm |
| Tárolási hőmérséklet | -45°C ... +80°C |
| Tolerance for switch on | ±5K |
| Tolerance switch off | ±5K |
| Tömeg | 0,023 kg |
Termékleírás
Tamper-proof (Pre-set) Thermostat FTO 011: Normally closed - Contact breaks (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamper-proof (Pre-set) Thermostat FTS 011: Normally open - Contact makes(blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
