Tápegység 1 fázis, Dimension Q széria

DC relay output	Igen

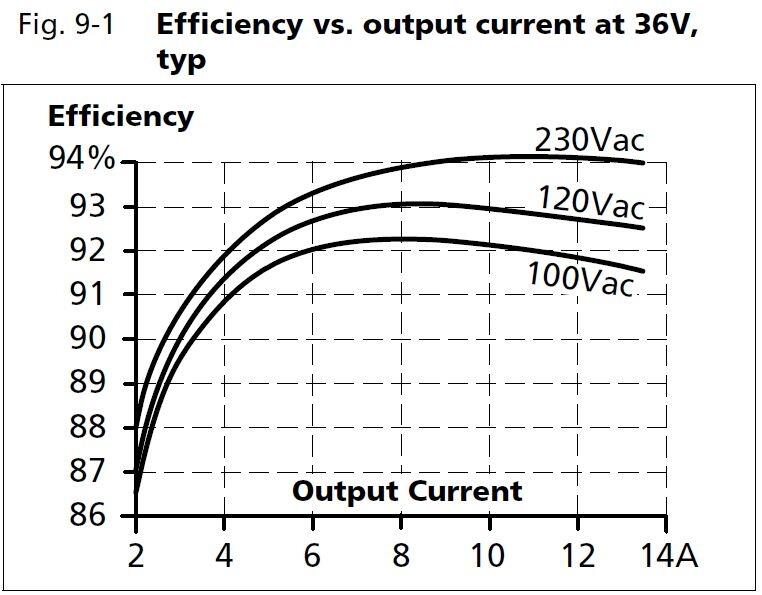

Efficiency At 120 V AC, full load. Typical	92,5 %
Efficiency At 230 V AC, full load. Typical	94 %
Efficiency At 230 V AC. Typical	93,3 %
Fázisok száma	1
Hold-up time at 120 V AC, full load. Typical.	32 ms
Hold-up time at 230 V AC, full load. Typical.	51 ms
Input voltage AC	100-240 V
Input voltage ac max	276 V AC
Input voltage ac min	85 V AC
Input voltage DC	110-150 V
Input voltage dc max	187 V DC
Input voltage dc min	88 V DC
Input voltage range	Wide-range
Inrush current at 120 V ac typical	4 A
Inrush current at 230 V ac typical	7 A
IP-osztály	IP20
Jóváhagyások	ABS, CB, CE, CSA, GL, UL
Lifetime at 120 V ac, full load and +40 ° C	61000 h
Lifetime at 230 V ac, full load and +40 ° C	84000 h
Magasság	124 mm

Mélység	127 mm
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	469000 h
Output Current	13,3 A

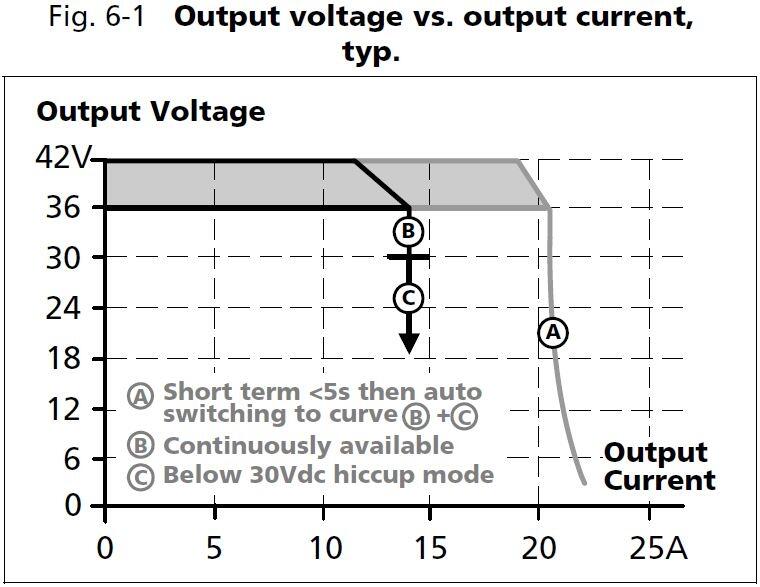

Output voltage	36 V DC
Output voltage max	42 V DC
Output voltage min	36 V DC
Power Consumption At 120 V AC	4,56 A
Power Consumption At 230 V AC	2,48 A
Power Factor at 120 V AC, full load. Typical	0,95
Power Factor at 230 V AC, full load. Typical	0,9

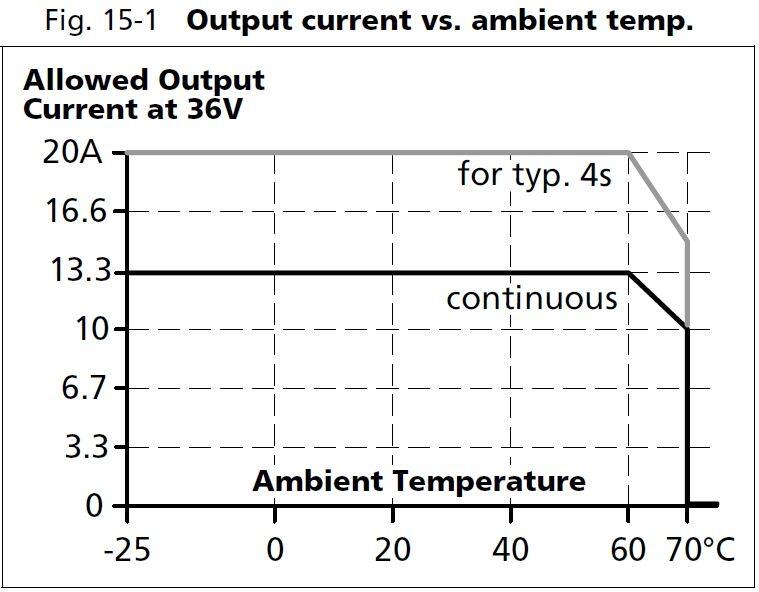

Power Reduction Of 60 To 70 ° C	12 W/°C
Ripple. max	100 mV pp
Series	Dimension Q
Supply Frequency	50-60 ±6 %

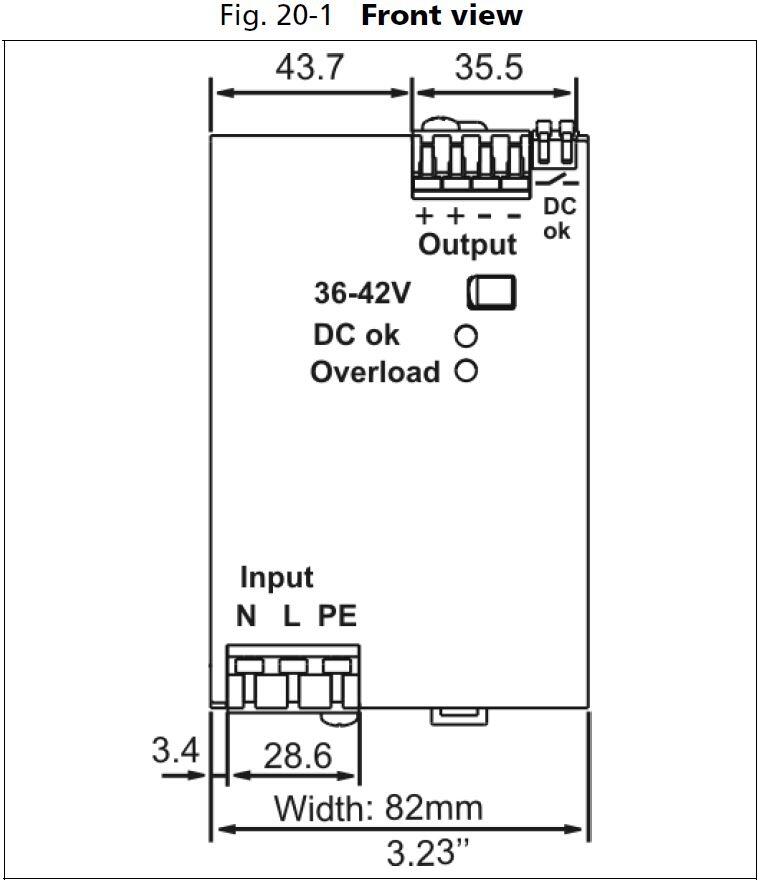

Szélesség	82 mm
Teljesítmény	480 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	1,2 kg
Védőanyag	Alumínium
