Tápegység 1 fázis, 48 VDC Dimension széria

Active Transient	Igen
Clamp type	Csavar
DC relay output	Igen

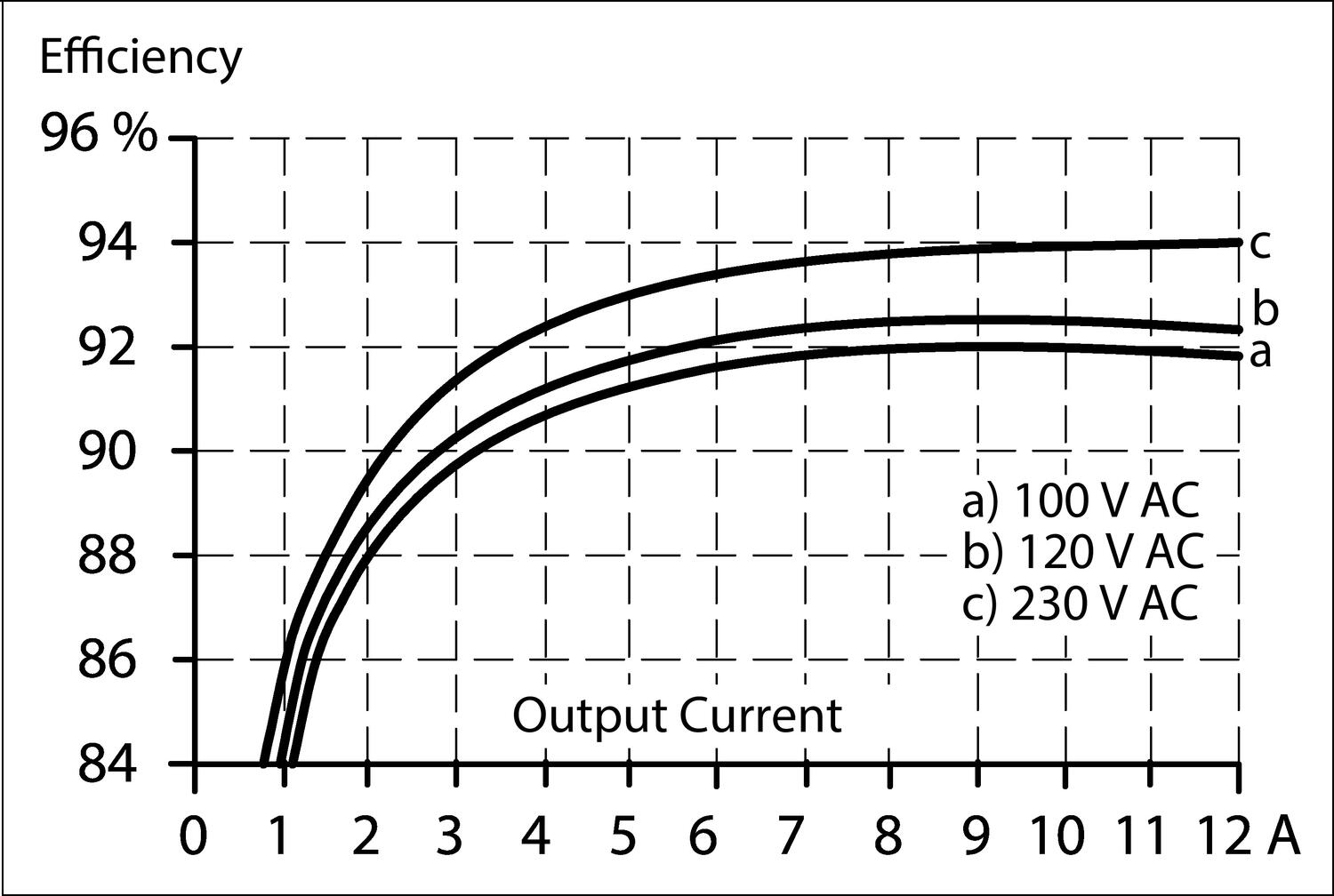

Efficiency At 120 V AC, full load. Typical	92,6 %
Efficiency At 230 V AC, full load. Typical	93,9 %
Efficiency At 230 V AC. Typical	92,8 %
Fázisok száma	1
Hold-up time at 120 V AC, full load. Typical.	26 ms
Hold-up time at 230 V AC, full load. Typical.	26 ms
Input current at 230 V ac typical	7 A
Input voltage AC	100-240 V
Input voltage ac max	264 V AC
Input voltage ac min	100 V AC
Input voltage range	Wide-range
Inrush current at 120 V ac typical	9 A
IP-osztály	IP20
Jóváhagyások	ABS, ATEX, CB, CE, CSA US, cRUus, cULus, GL, IECEx
Lifetime at 120 V ac, full load and +40 ° C	70000 h
Lifetime at 230 V ac, full load and +40 ° C	87000 h

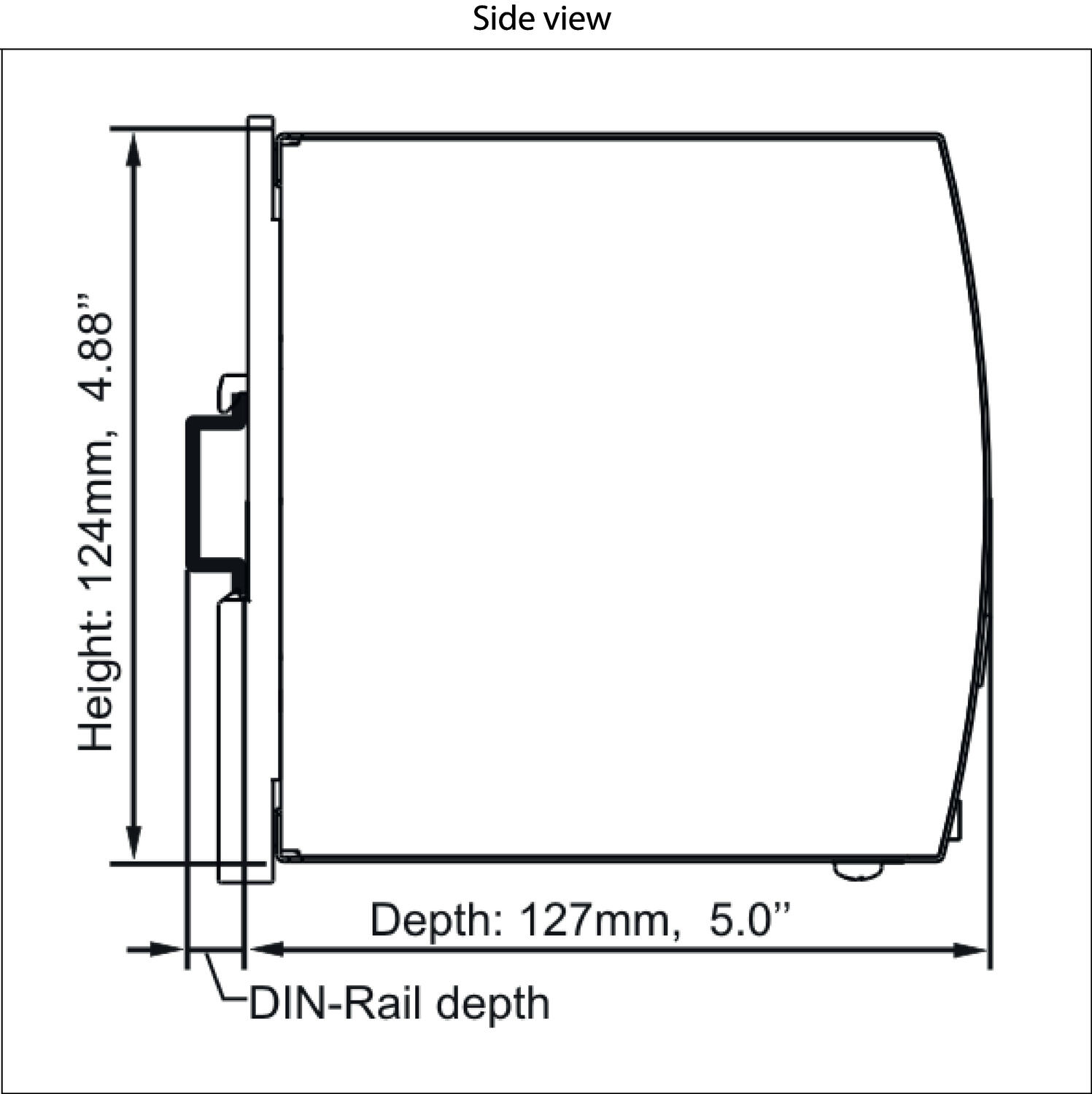

Magasság	124 mm
Mélység	117 mm

MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	537000 h
Output Current	10 A
Output voltage	48 V DC
Output voltage max	56 V DC
Output voltage min	48 V DC
Power Consumption At 120 V AC	4,36 A
Power Consumption At 230 V AC	2,33 A
Power Factor at 120 V AC, full load. Typical	0,99
Power Factor at 230 V AC, full load. Typical	0,95

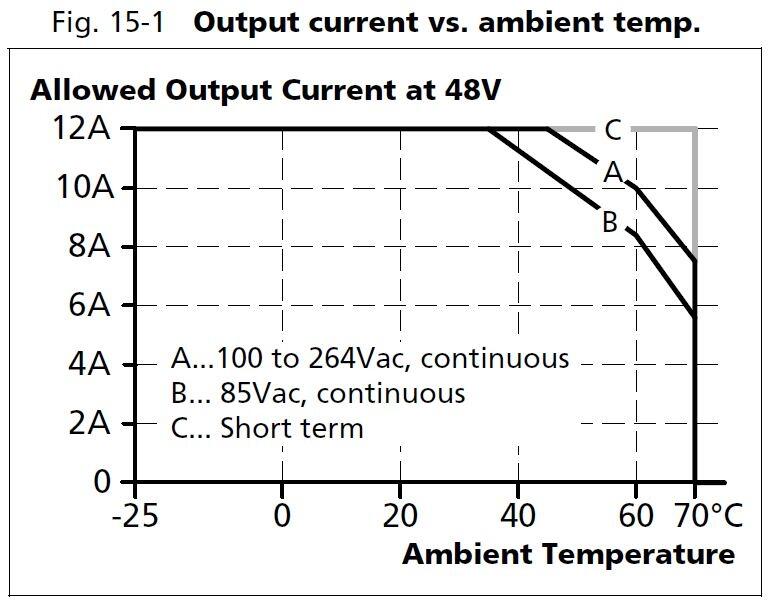

Power Reduction Of 60 To 70 ° C	12 W/°C
Ripple. max	50 mV pp
Series	Dimension C
Supply Frequency	50-60 ±6 %
Szélesség	65 mm
Teljesítmény	480 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	1 kg
Védőanyag	Alumínium

48-56 V DC, 10 A

	Változatok	Bekapcsolási túláram	Efficiency	Efficiency At 120 V AC, full load. Typical	Efficiency At 230 V AC, full load. Typical	Efficiency At 230 V AC. Typical	Fázisok száma	Hold-up time at 120 V AC, full load. Typical.	Hold-up time at 230 V AC, full load. Typical.	Input current at 230 V ac typical	Input voltage AC	Input voltage ac max	Input voltage ac min	Input voltage DC	Input voltage dc max	Input voltage dc min	Input voltage range	Inrush current at 120 V ac typical	Jóváhagyások	Keep time	Lifetime at 120 V ac, full load and +40 ° C	Lifetime at 230 V ac, full load and +40 ° C	Max entrance tripple	MTBF (IEC 61709)	MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	Power Consumption At 120 V AC	Power Consumption At 230 V AC	Power Factor at 120 V AC, full load. Typical	Power Factor at 230 V AC, full load. Typical	Start-Up Delay	Supply Frequency	Tömeg	Ár
	PSU 100-240V ac I/P 48V dc 10A 480W O/P Cikkszám CPS20.481 Másolva			92,6 %	93,9 %	92,8 %	1	26 ms	26 ms	7 A	100-240 V	264 V AC	100 V AC				Wide-range	9 A	ABS, ATEX, CB, CE, CSA US, cRUus, cULus, GL, IECEx		70000 h	87000 h			537000 h	4,36 A	2,33 A	0,99	0,95		50-60 ±6 %	1 kg

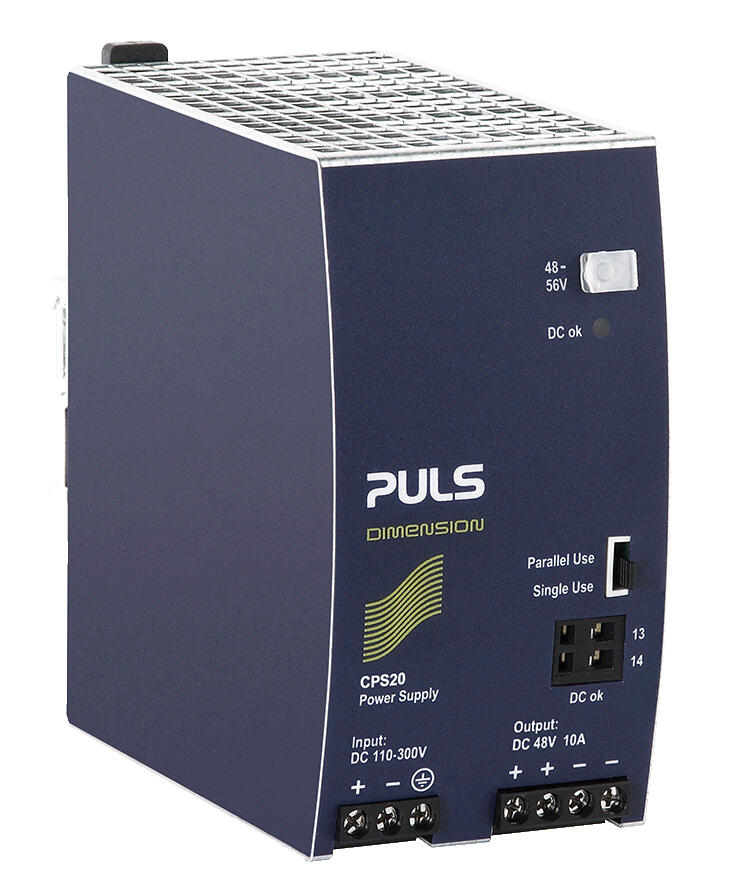

	PSU 110-300V dc I/P 48V dc 10A 480W O/P Cikkszám CPS20.481-D1 Másolva	Typ. 6/4 A @ 110/300 V DC	94,6 %											110-300 V	360 V DC	88 V DC			ATEX, CB, CE, CSA US, cRUus, cULus, IECEx	Typ. 26/26 ms @ 110/300 V DC			50 V pp	537000 h @ 10 A, 40 °C						1100 ms		0,94 kg
