Tápegység 1 fázis, 48 VDC Dimension Q széria

Active Transient	Igen
DC relay output	Igen

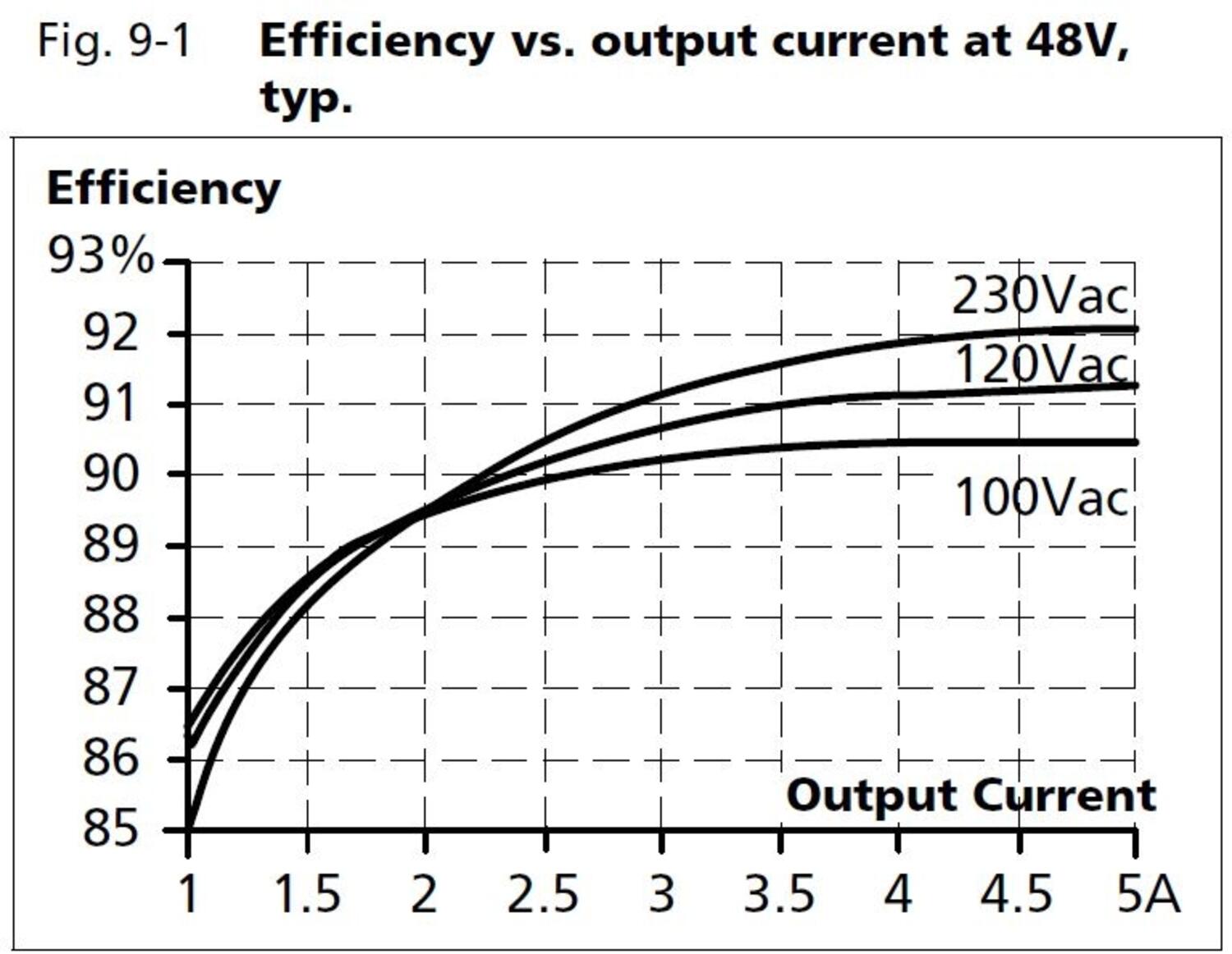

Efficiency At 120 V AC, full load. Typical	91,2 %
Efficiency At 230 V AC, full load. Typical	92 %
Efficiency At 230 V AC. Typical	90,3 %
Fázisok száma	1
Hold-up time at 120 V AC, full load. Typical.	27 ms
Hold-up time at 230 V AC, full load. Typical.	28 ms
Input voltage AC	100-240 V
Input voltage ac max	276 V AC
Input voltage ac min	90 V AC
Input voltage DC	110-150 V
Input voltage dc max	187 V DC
Input voltage dc min	88 V DC
Input voltage range	Wide-range
Inrush current at 120 V ac typical	4 A
Inrush current at 230 V ac typical	7 A
IP-osztály	IP20
Jóváhagyások	ABS, CB, CE, CSA, GL, UL
Lifetime at 120 V ac, full load and +40 ° C	67000 h
Lifetime at 230 V ac, full load and +40 ° C	81000 h
Magasság	124 mm

Mélység	117 mm
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	606000 h
Output Current	5 A

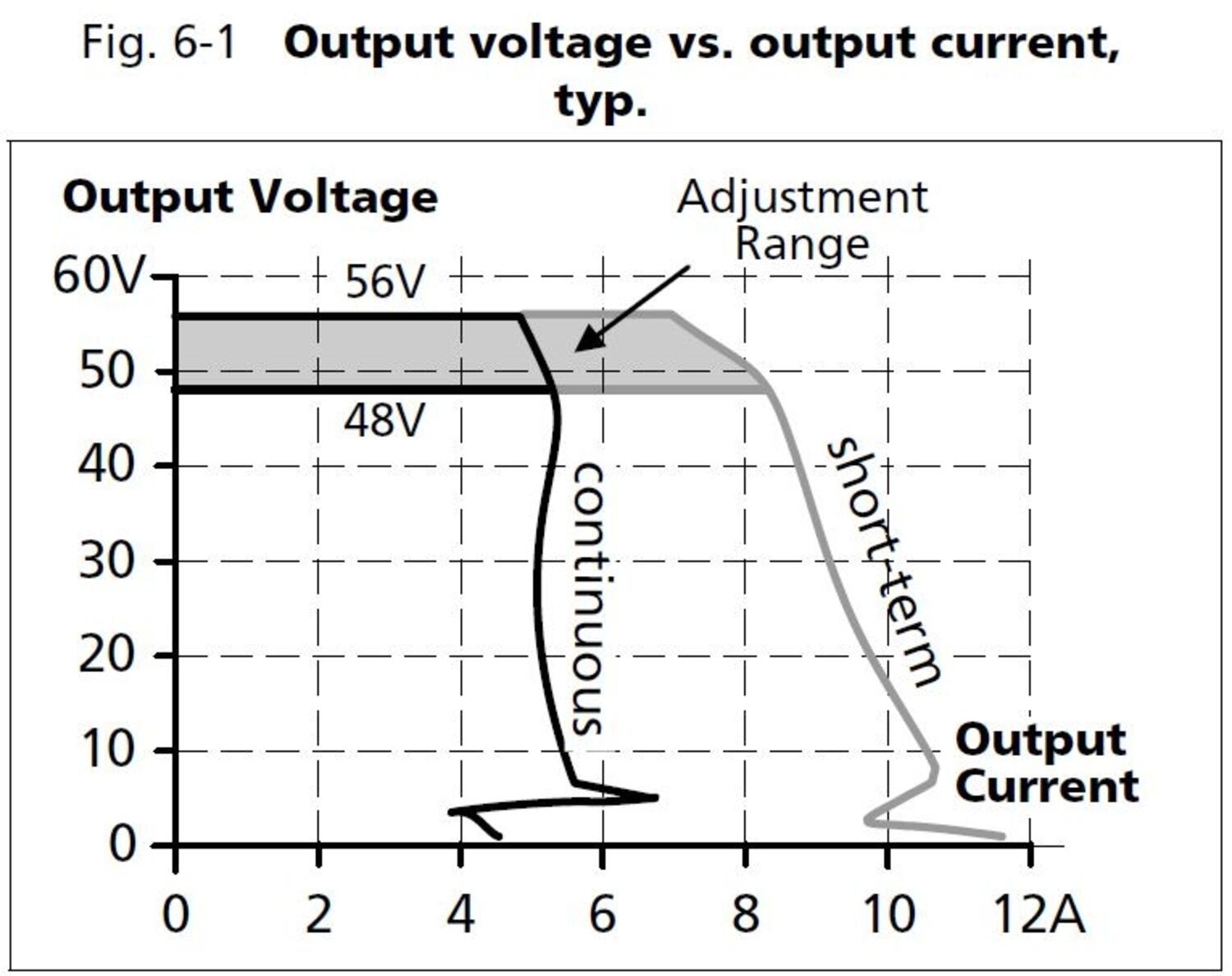

Output voltage	48 V DC
Output voltage max	56 V DC
Output voltage min	48 V DC
Power Consumption At 120 V AC	2,22 A
Power Consumption At 230 V AC	1,22 A
Power Factor at 120 V AC, full load. Typical	0,98
Power Factor at 230 V AC, full load. Typical	0,92

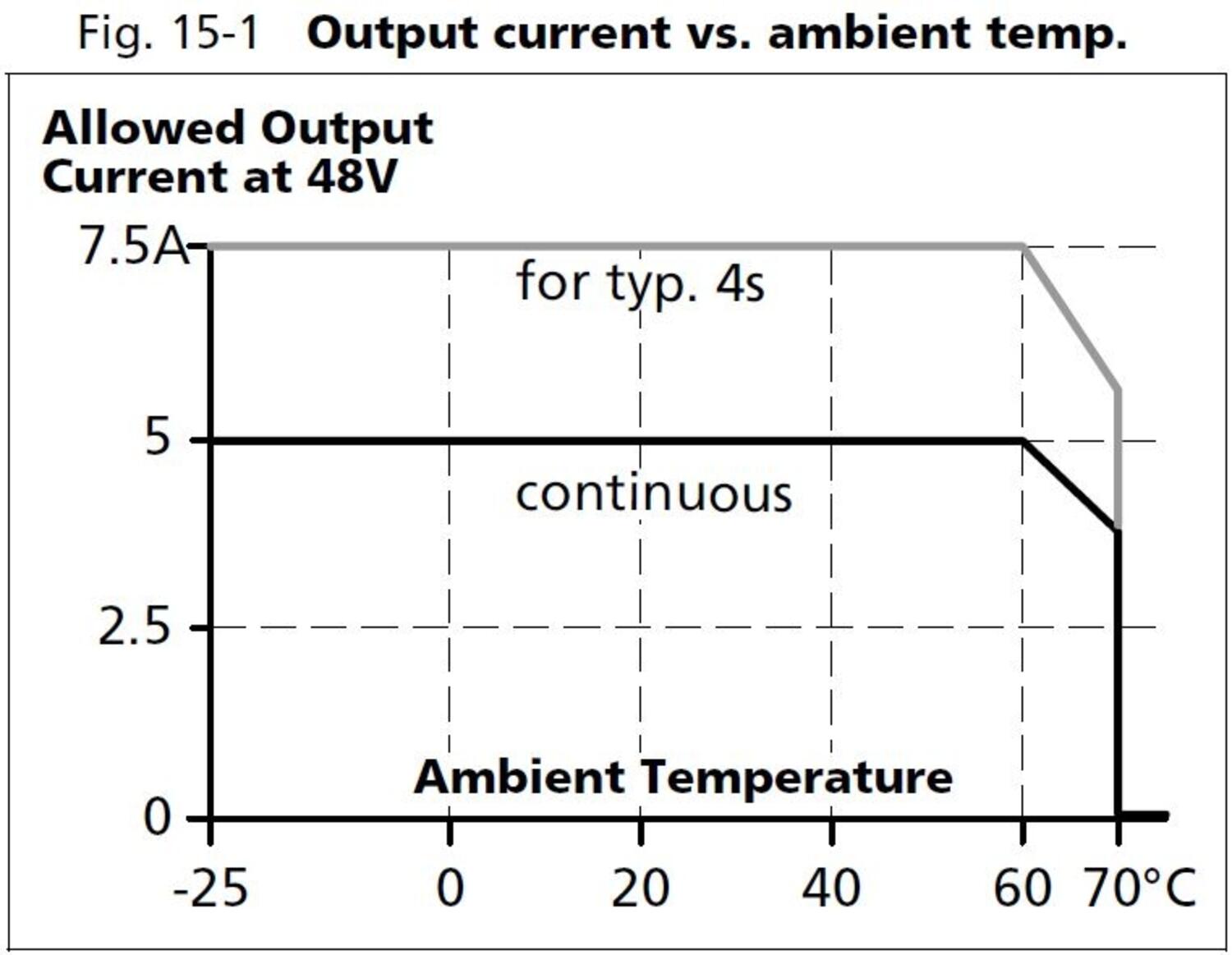

Power Reduction Of 60 To 70 ° C	6 W/°C
Ripple. max	100 mV pp
Series	Dimension Q
Supply Frequency	50-60 ±6 %

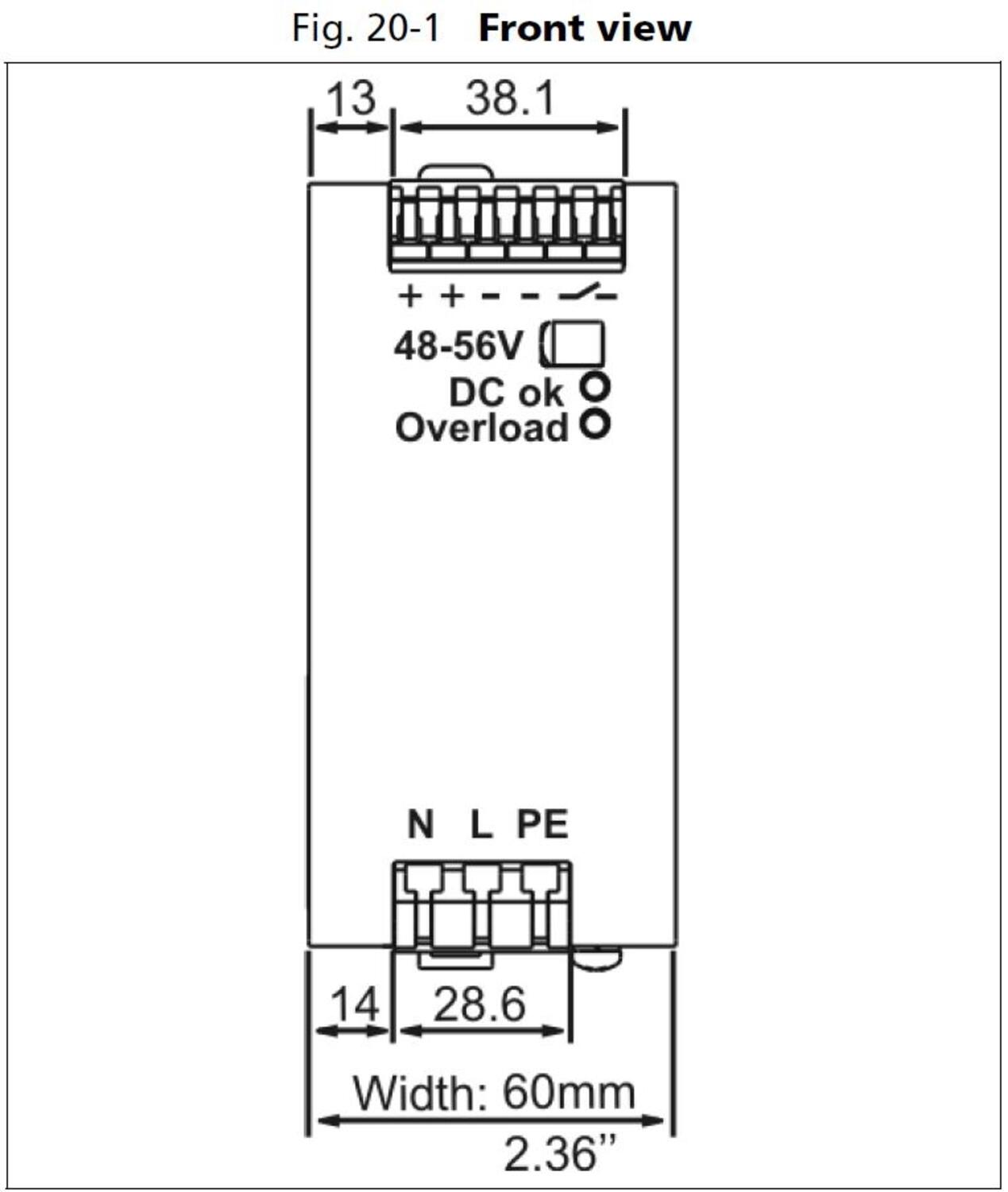

Szélesség	60 mm
Teljesítmény	240 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	0,9 kg
Védőanyag	Alumínium

48-56 V DC, 5 A és 10 A

Változatok	Active Transient	Efficiency At 120 V AC, full load. Typical	Efficiency At 230 V AC, full load. Typical	Efficiency At 230 V AC. Typical	Hold-up time at 120 V AC, full load. Typical.	Hold-up time at 230 V AC, full load. Typical.	Input voltage ac min	Input voltage DC	Input voltage dc max	Inrush current at 120 V ac typical	Jóváhagyások	Lifetime at 120 V ac, full load and +40 ° C	Lifetime at 230 V ac, full load and +40 ° C	Mélység	MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	Output Current	Power Consumption At 120 V AC	Power Consumption At 230 V AC	Power Factor at 120 V AC, full load. Typical	Power Factor at 230 V AC, full load. Typical	Power Reduction Of 60 To 70 ° C	Szélesség	Teljesítmény	Tömeg

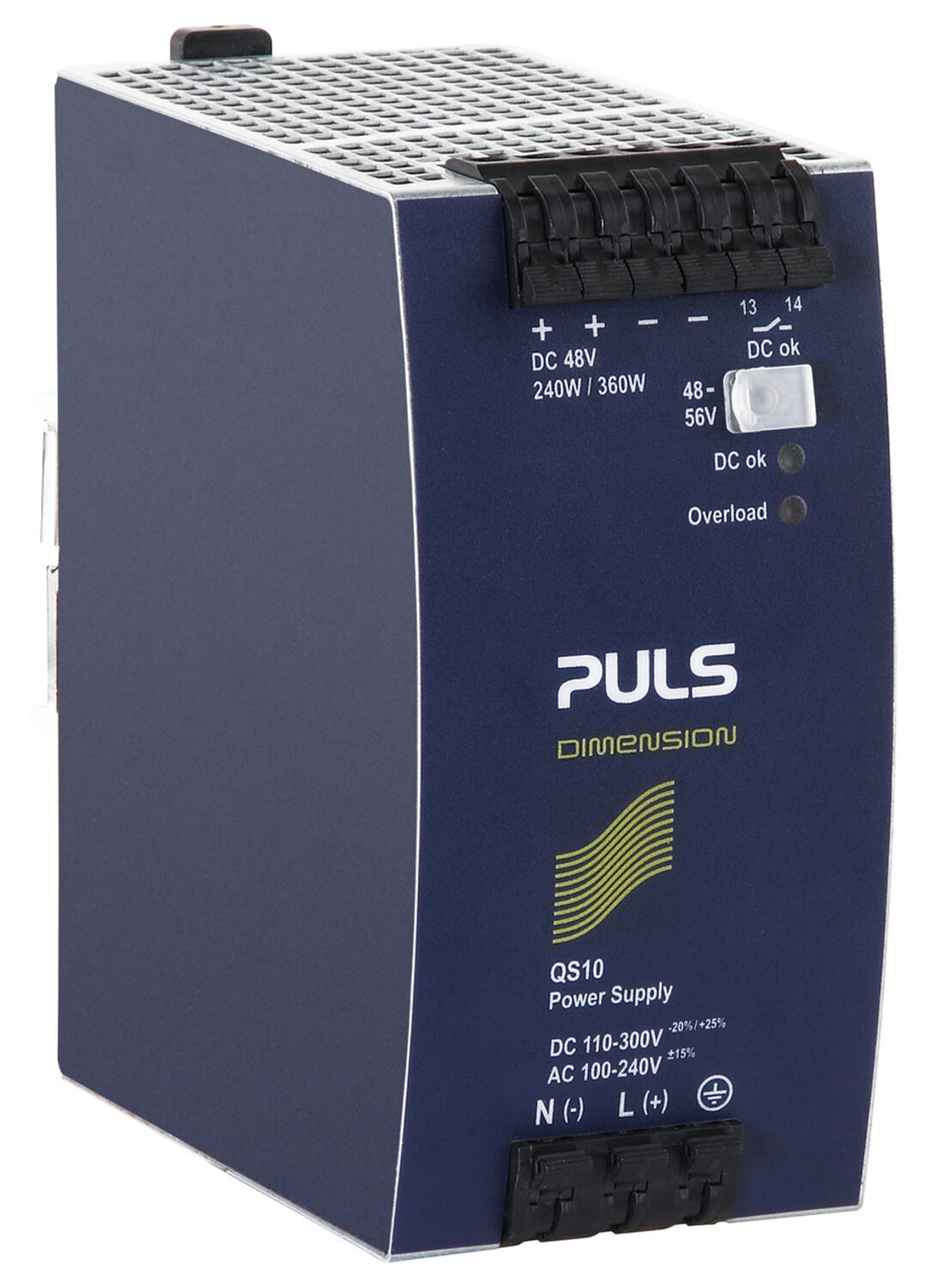

PSU 100-240V ac I/P 48V dc 5A 240W O/P Cikkszám QS10.481 Másolva	Igen	91,2 %	92 %	90,3 %	27 ms	28 ms	90 V AC	110-150 V	187 V DC	4 A	ABS, CB, CE, CSA, GL, UL	67000 h	81000 h	117 mm	606000 h	5 A	2,22 A	1,22 A	0,98	0,92	6 W/°C	60 mm	240 W	0,9 kg
PSU 100-240V ac I/P 48V dc 5A 240W O/P Extended dc I/P Cikkszám QS10.481-D1 Másolva	Igen	91,2 %	92 %	90,3 %	27 ms	28 ms	90 V AC	110-300 V	375 V DC	4 A	CB, CE, CSA, UL	67000 h	81000 h	117 mm	606000 h	5 A	2,22 A	1,22 A	0,98	0,92	6 W/°C	60 mm	240 W	0,9 kg

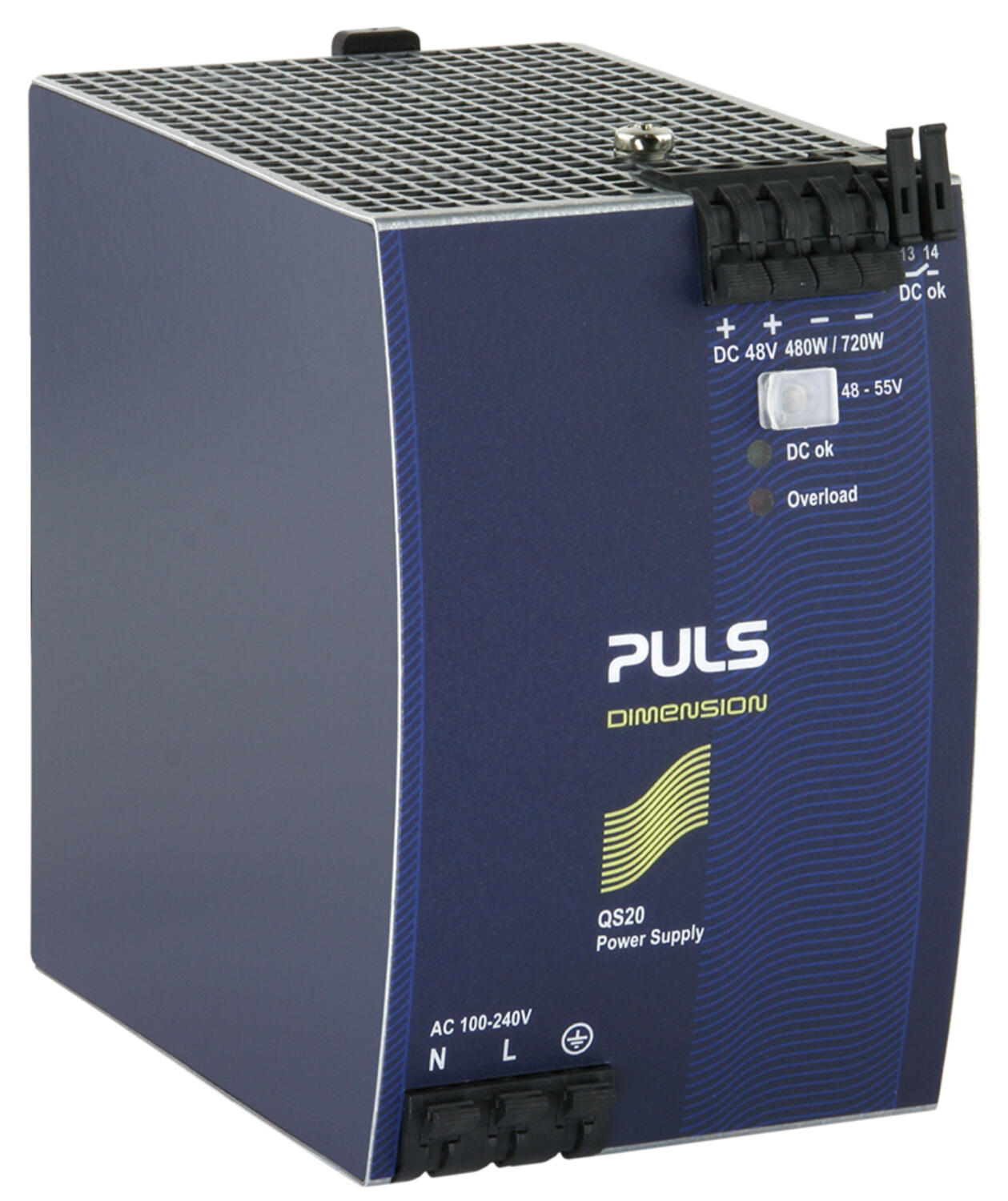

PSU 100-240V ac I/P 48V dc 10A 480W O/P Cikkszám QS20.481 Másolva		92,8 %	94,3 %	93,4 %	32 ms	51 ms	85 V AC	110-150 V	187 V DC	9 A	ABS, CB, CE, CSA, GL, UL	63000 h	92000 h	127 mm	469000 h	10 A	4,56 A	2,48 A	0,95	0,9	12 W/°C	82 mm	480 W	1,2 kg
