Tápegység 1 fázis, 24 VDC Piano széria

Clamp type	Csavar
DC relay output	Igen

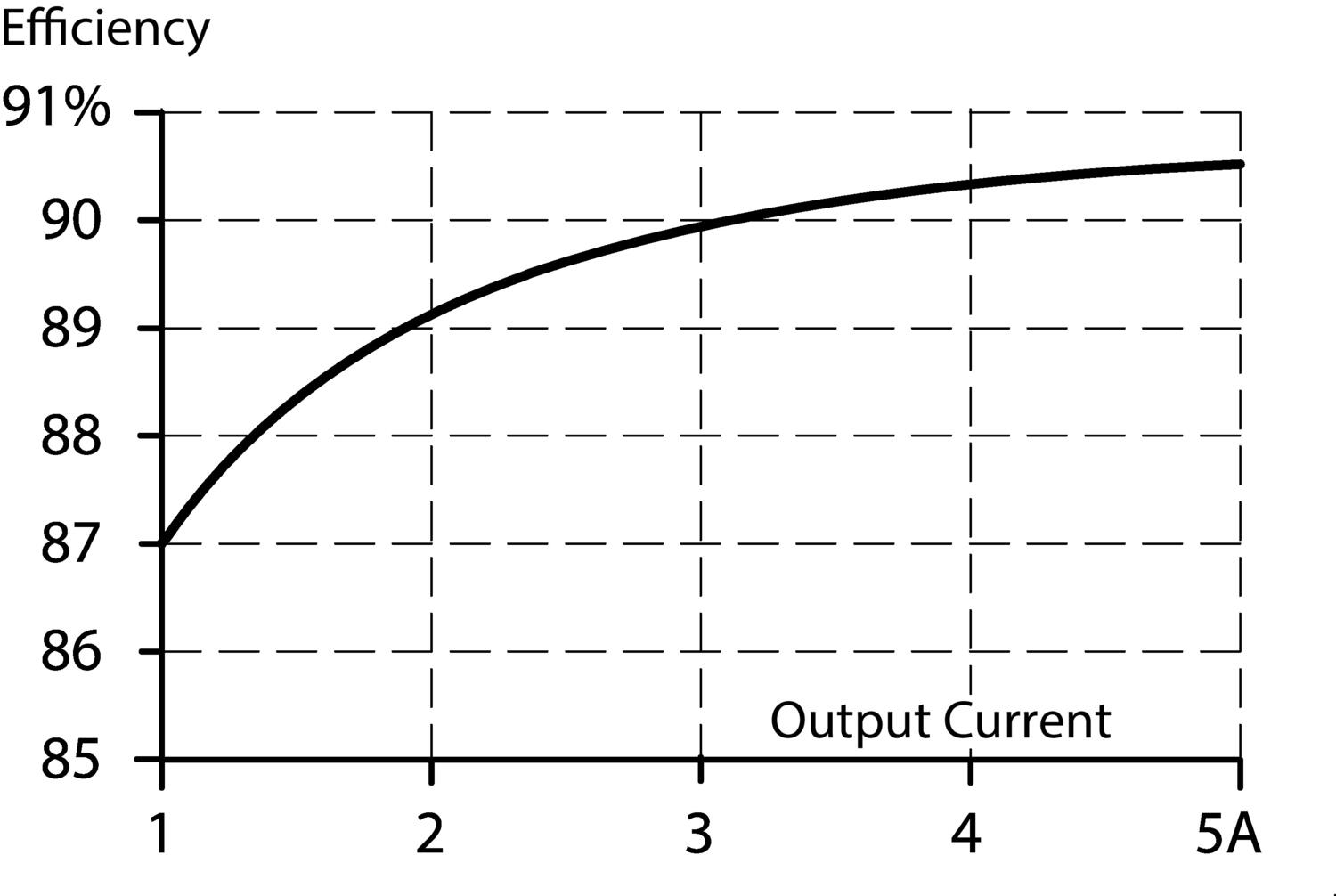

Efficiency At 230 V AC, full load. Typical	90,5 %
Efficiency At 230 V AC. Typical	89,5 %
Fázisok száma	1
Hold-up time at 230 V AC, full load. Typical.	33 ms
Input voltage AC	200-240 V
Input voltage ac max	264 V AC
Input voltage ac min	180 V AC
Inrush current at 230 V ac typical	28 A
IP-osztály	IP20
Jóváhagyások	CB, CE, cRUus, cULus, GL
Lifetime at 230 V ac, full load and +40 ° C	47000 h

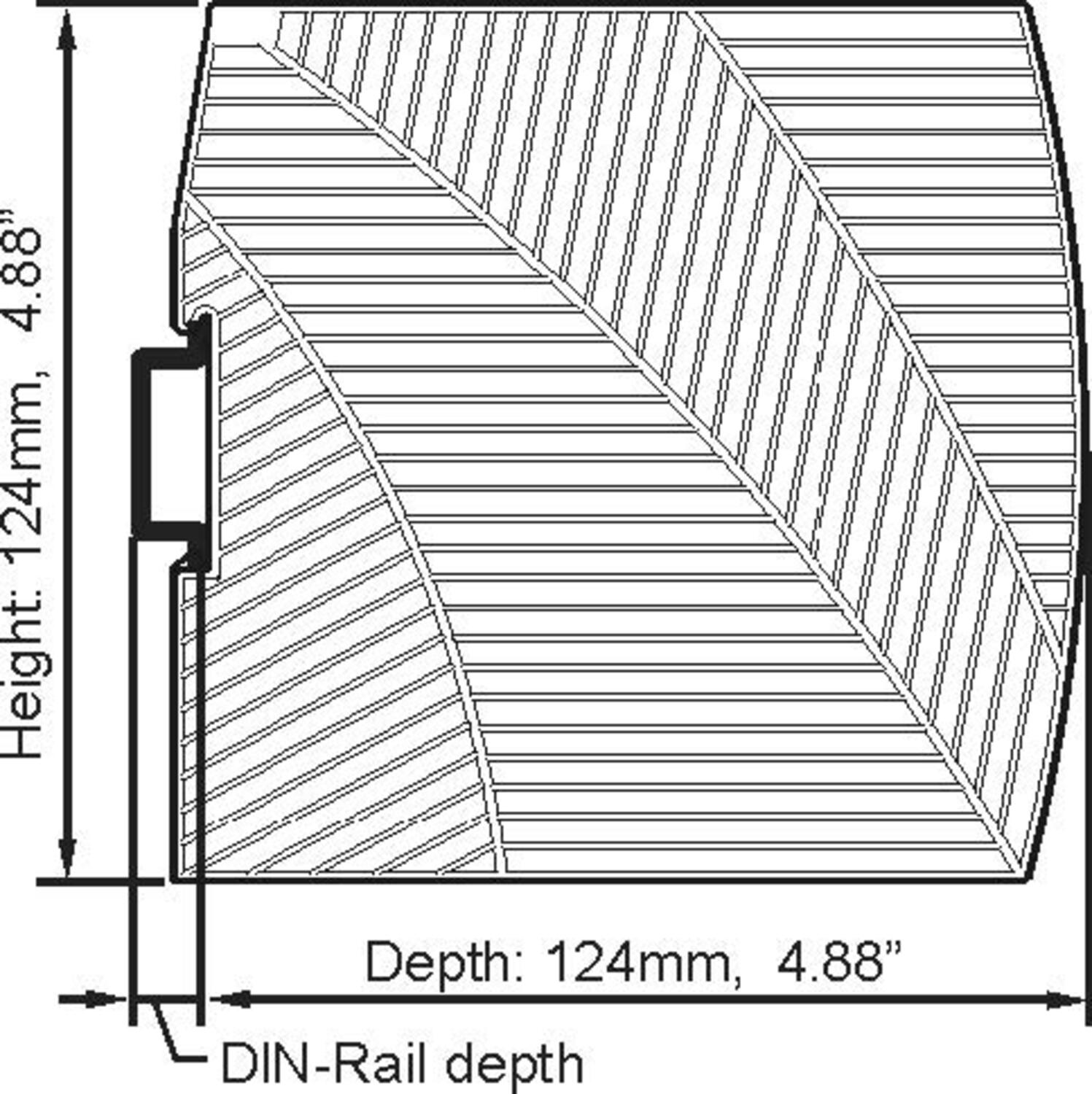

Magasság	124 mm
Mélység	124 mm
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	1720000 h
Output Current	5 A

Output voltage	24 V DC
Output voltage max	28 V DC
Output voltage min	24 V DC
Power Consumption At 230 V AC	1,06 A
Power Factor at 230 V AC, full load. Typical	0,54

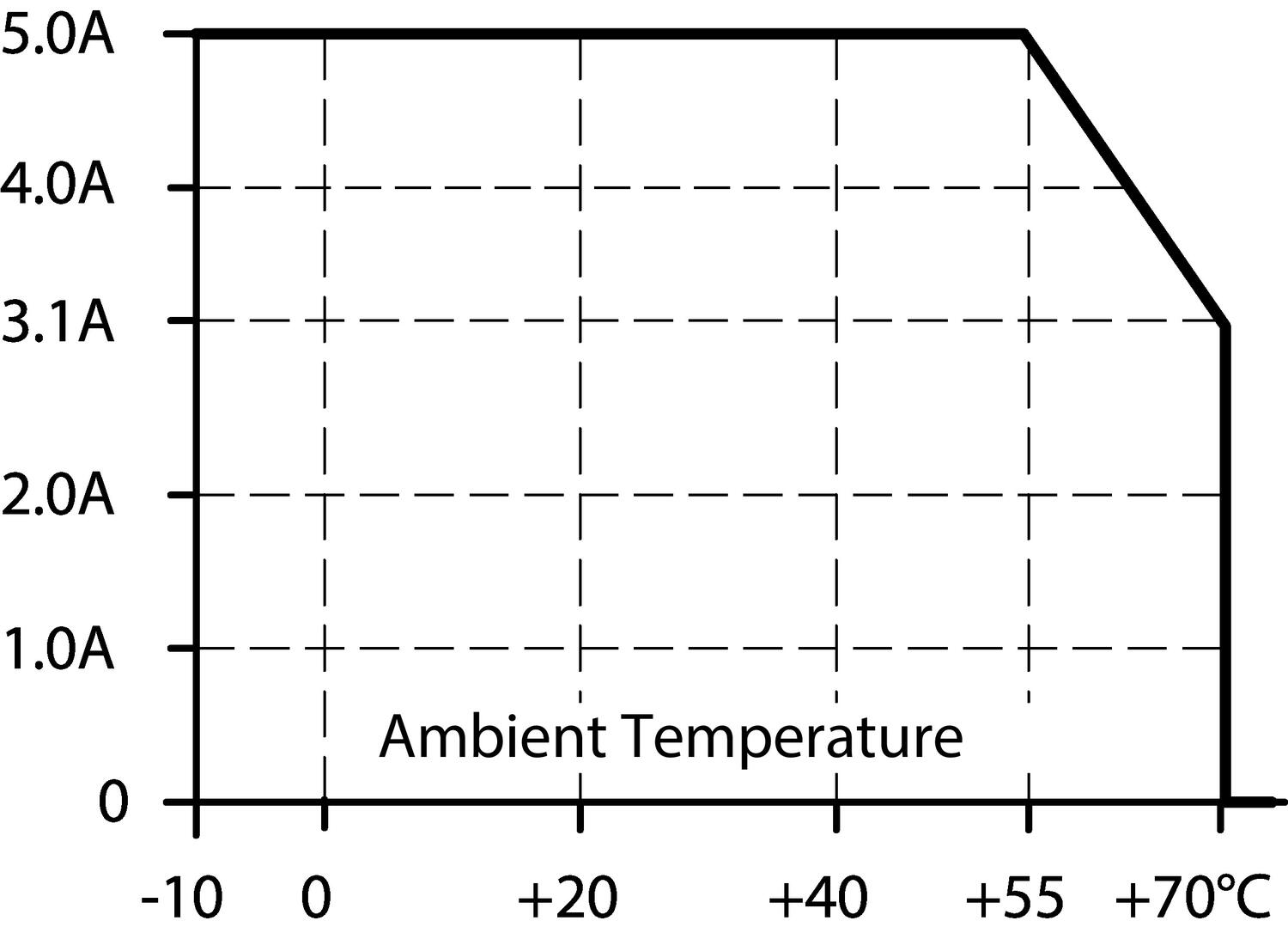

Power Reduction Of 60 To 70 ° C	3 W/°C
Ripple. max	100 mV pp
Series	Piano
Supply Frequency	50-60 ±6 %

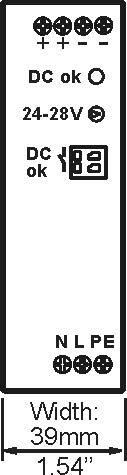

Szélesség	39 mm
Teljesítmény	120 W
Temperature Range Without Derating From	-10 °C
Temperature Range Without Derating To	55 °C
Tömeg	0,35 kg
Védőanyag	Polikarbonát

24-28 V DC, 5 A

Változatok	DC relay output	Efficiency At 120 V AC, full load. Typical	Efficiency At 230 V AC, full load. Typical	Efficiency At 230 V AC. Typical	Hold-up time at 120 V AC, full load. Typical.	Hold-up time at 230 V AC, full load. Typical.	Input voltage AC	Input voltage ac min	Input voltage range	Inrush current at 120 V ac typical	Inrush current at 230 V ac typical	Jóváhagyások	Lifetime at 120 V ac, full load and +40 ° C	Lifetime at 230 V ac, full load and +40 ° C	MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	Power Consumption At 120 V AC	Power Consumption At 230 V AC	Power Factor at 120 V AC, full load. Typical	Tömeg

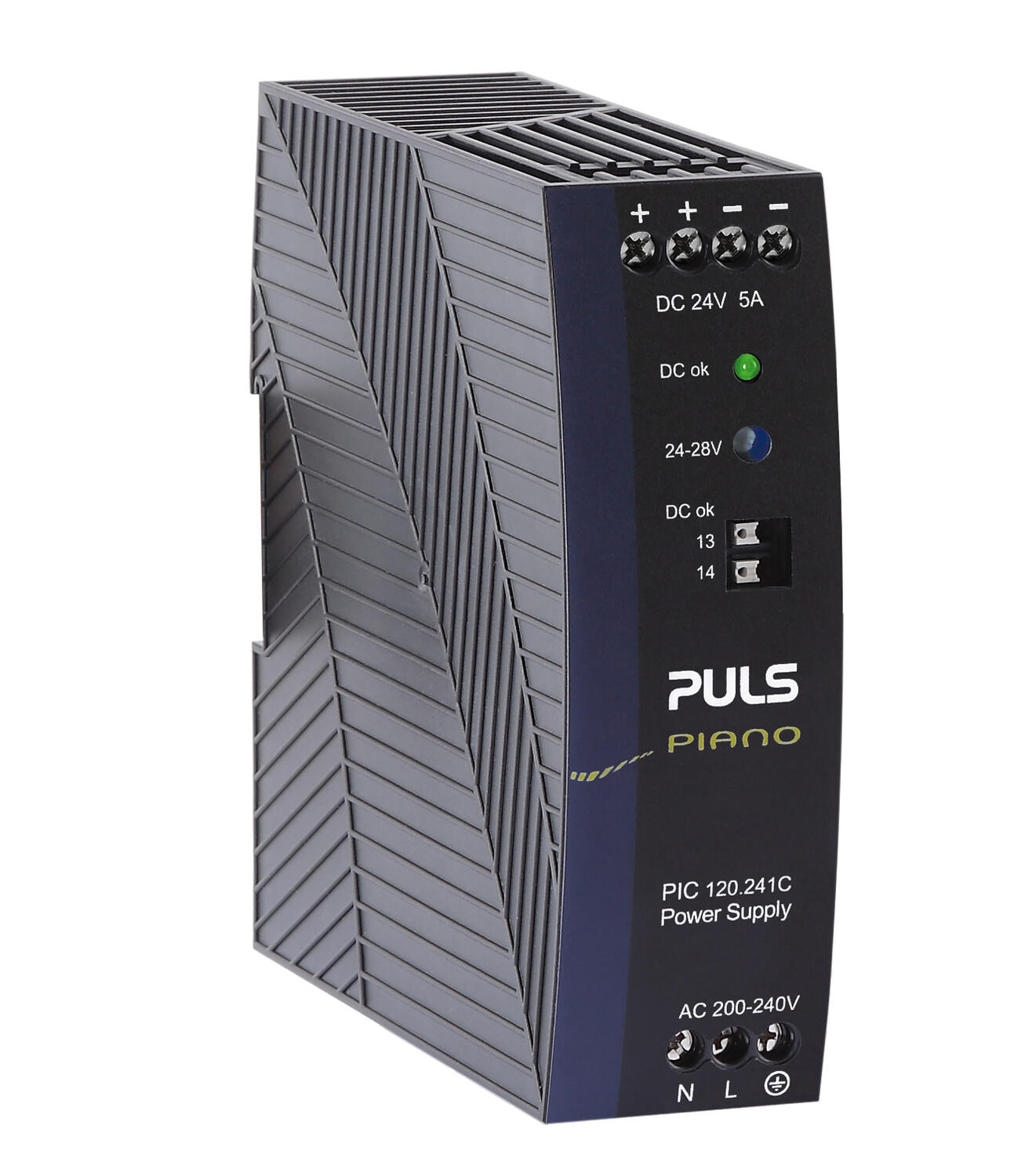

PSU 200-240V ac I/P 24V dc 5A 120W O/P Cikkszám PIC120.241C Másolva	Igen		90,5 %	89,5 %		33 ms	200-240 V	180 V AC			28 A	CB, CE, cRUus, cULus, GL		47000 h	1720000 h		1,06 A		0,35 kg
PSU 200-240V ac I/P 24V dc 5A 120W O/P w/o DC-OK Cikkszám PIC120.242C Másolva			90,5 %	89,5 %		33 ms	200-240 V	180 V AC			28 A	CB, CE, cRUus, cULus, GL		47000 h	1720000 h		1,06 A		0,35 kg

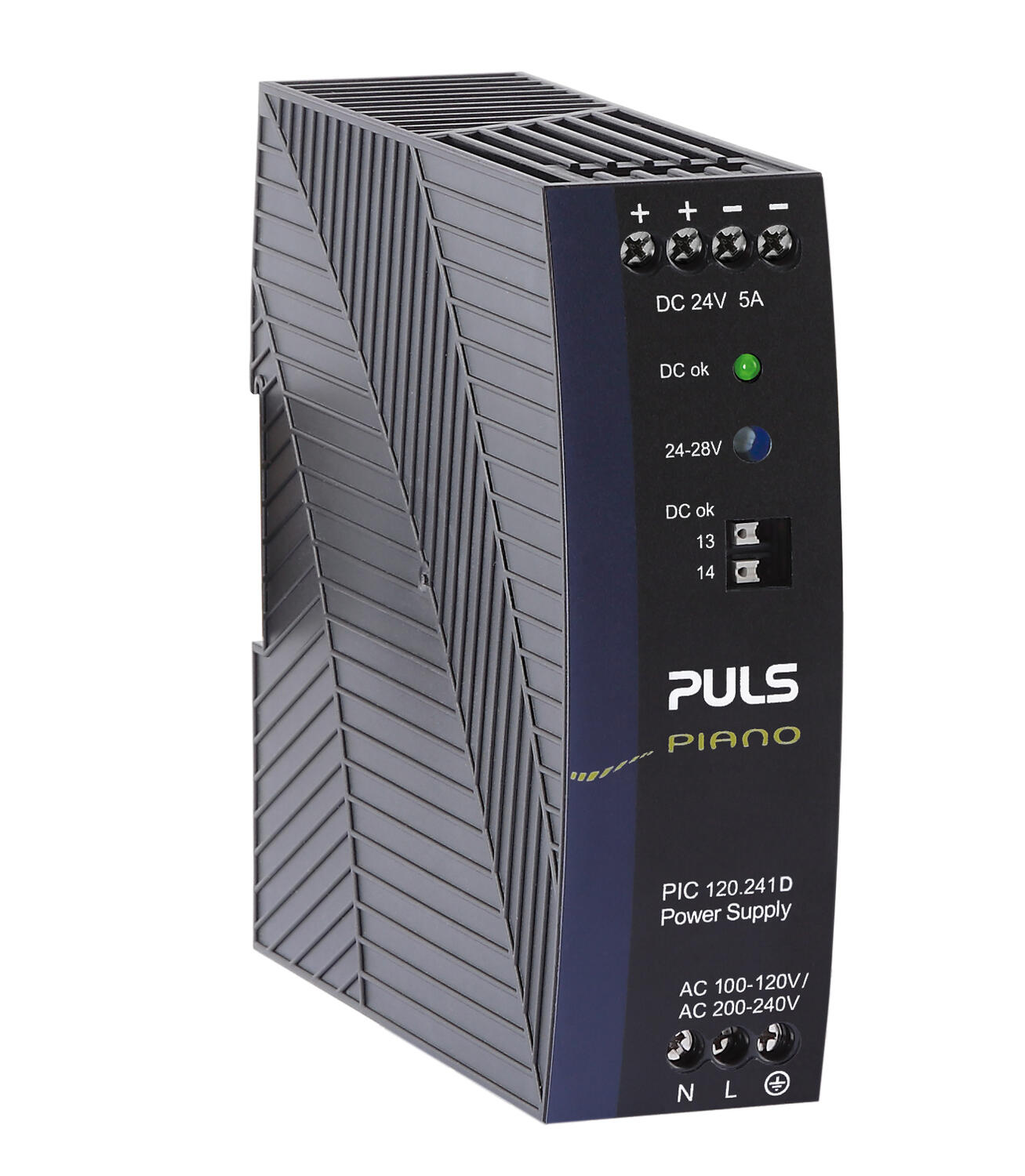

PSU 100-120/200-240V ac I/P 24V dc 5A 120W O/P Cikkszám PIC120.241D Másolva	Igen	91,2 %	92,3 %	90,6 %	51 ms	50 ms	100-120, 200-240 V	90 V AC	Auto-select	22 A	33 A	CB, CE, cRUus, cULus	68000 h	83000 h	1379000 h	1,72 A	1,05 A	0,64	0,37 kg
