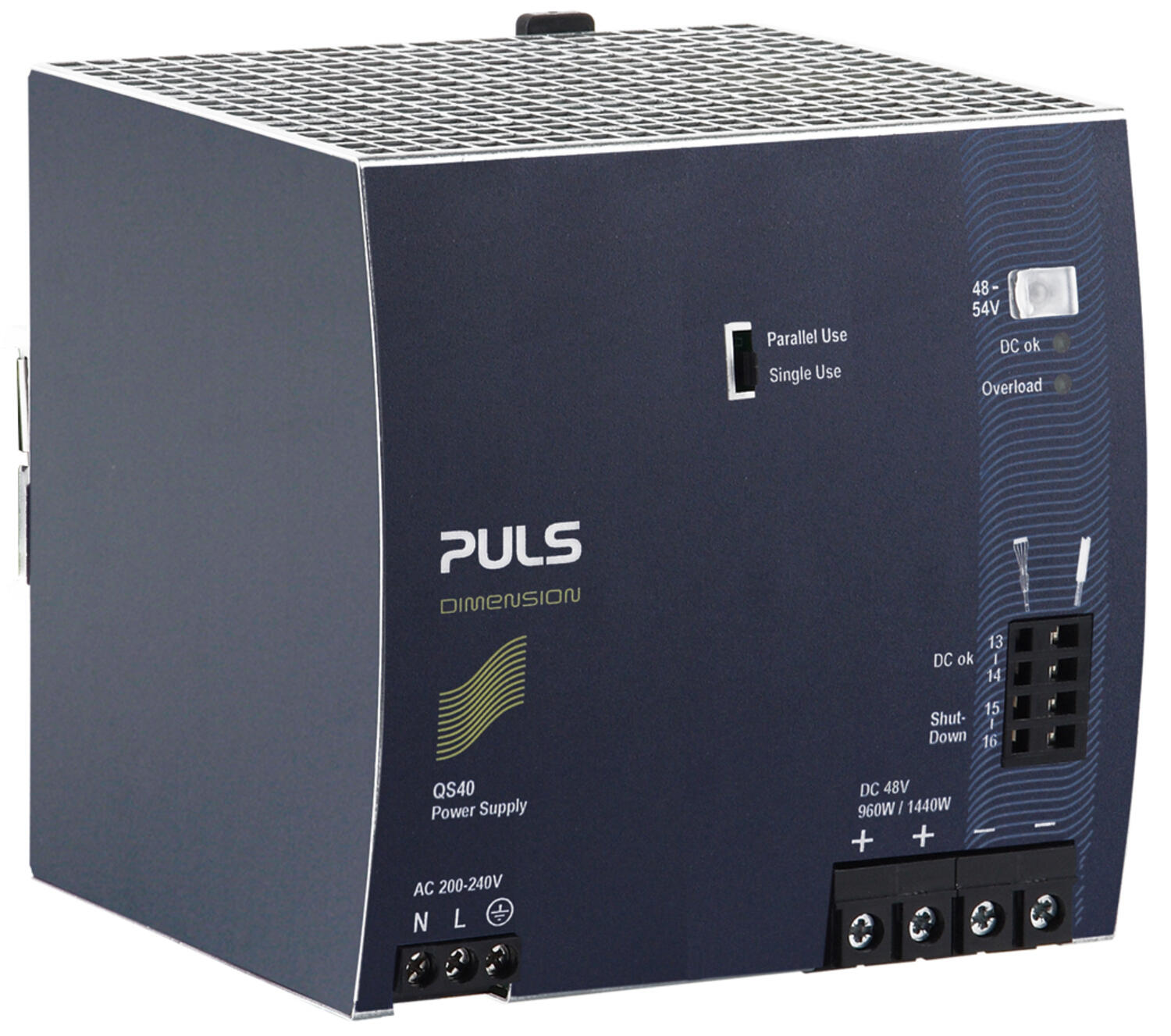

Tápegység 1 fázis, 48 VDC Dimension Q széria

DC relay output	Igen

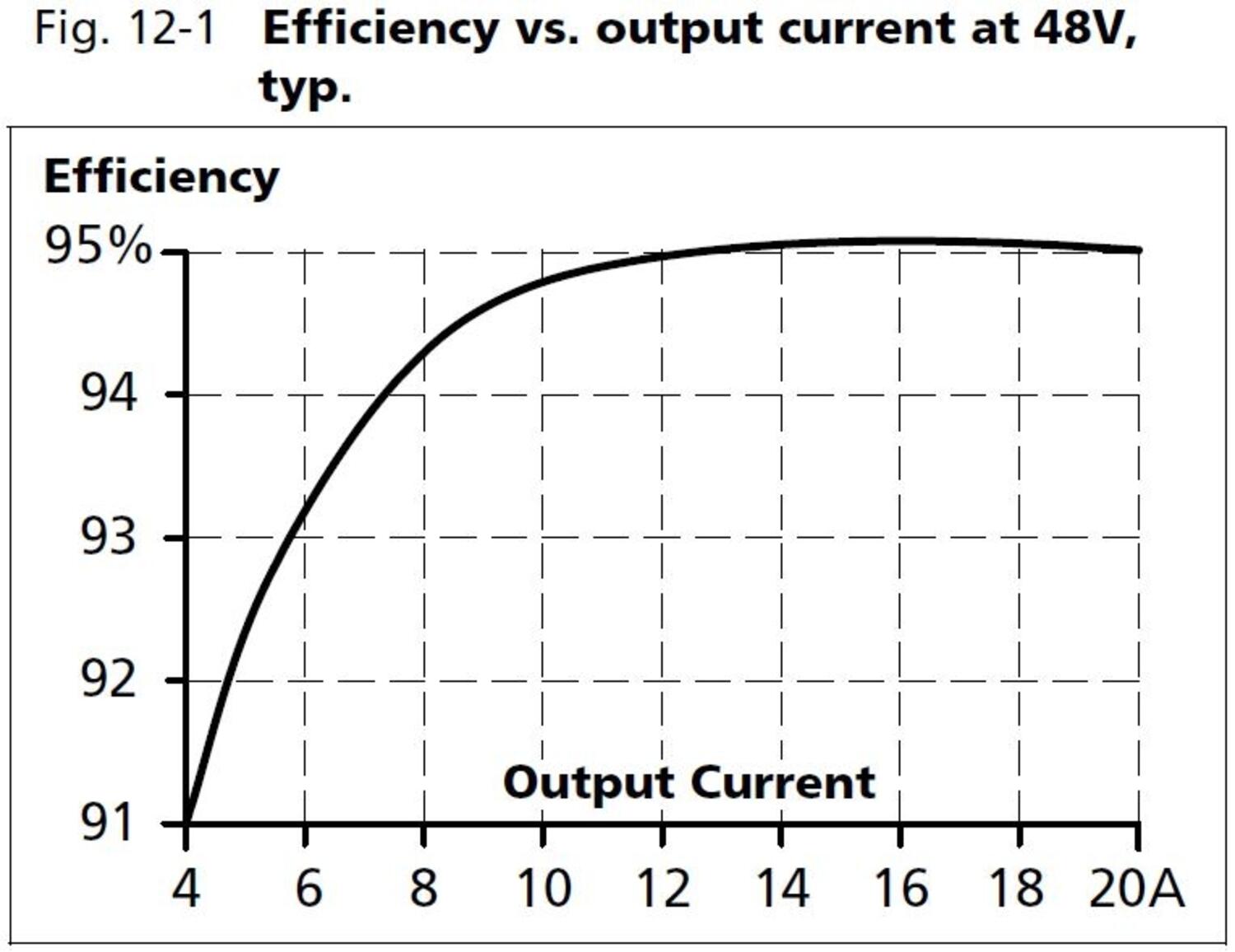

Efficiency At 230 V AC, full load. Typical	95 %
Efficiency At 230 V AC. Typical	94,2 %
Fázisok száma	1
Hold-up time at 230 V AC, full load. Typical.	30 ms
Input voltage AC	200-240 V
Input voltage ac max	264 V AC
Input voltage ac min	170 V AC
Inrush current at 230 V ac typical	14 A
IP-osztály	IP20
Jóváhagyások	ABS, CB, CE, CSA, GL, UL
Lifetime at 230 V ac, full load and +40 ° C	65000 h

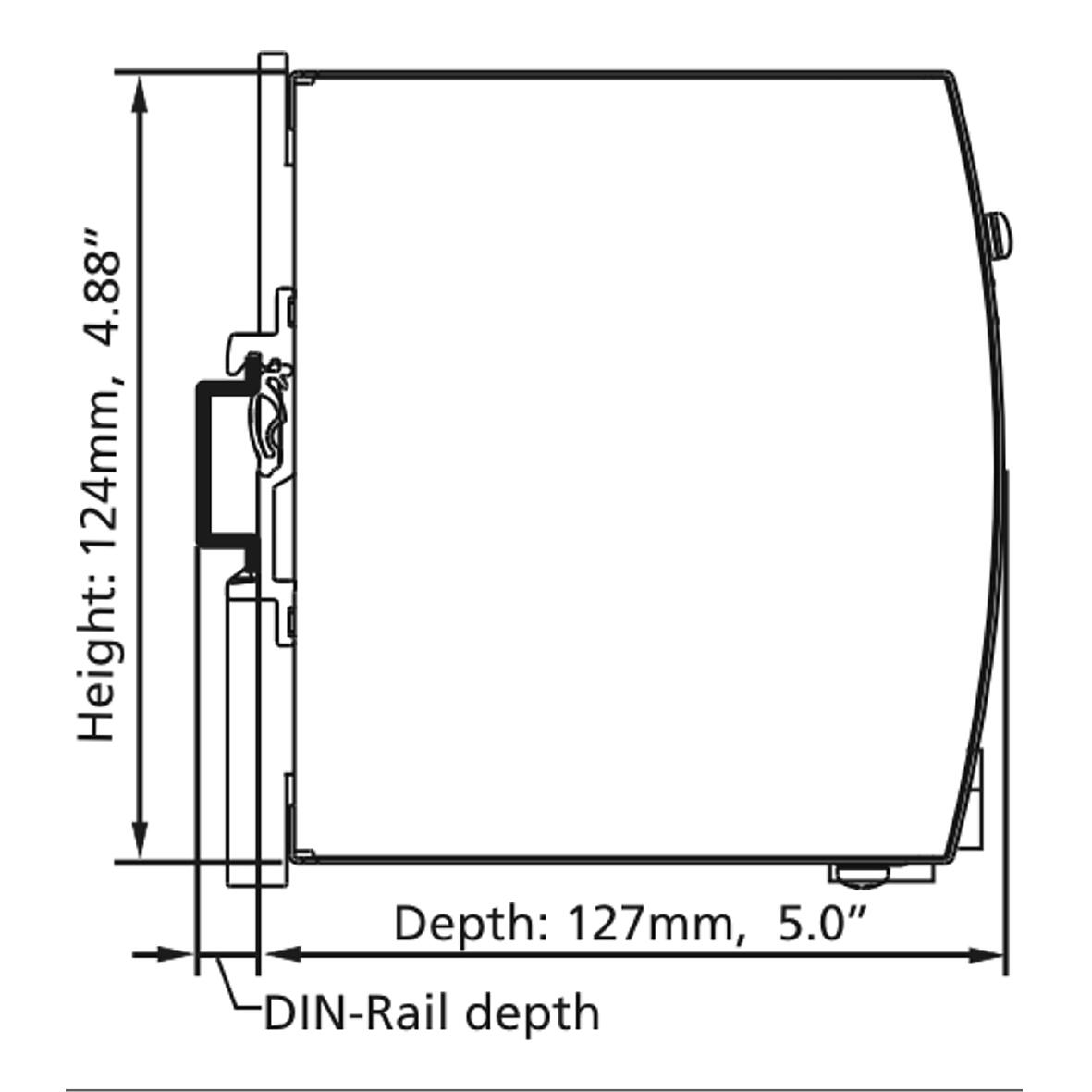

Magasság	124 mm
Mélység	127 mm
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	392000 h
Output Current	20 A

Output voltage	48 V DC
Output voltage max	54 V DC
Output voltage min	48 V DC
Power Consumption At 230 V AC	4,6 A
Power Factor at 230 V AC, full load. Typical	0,96

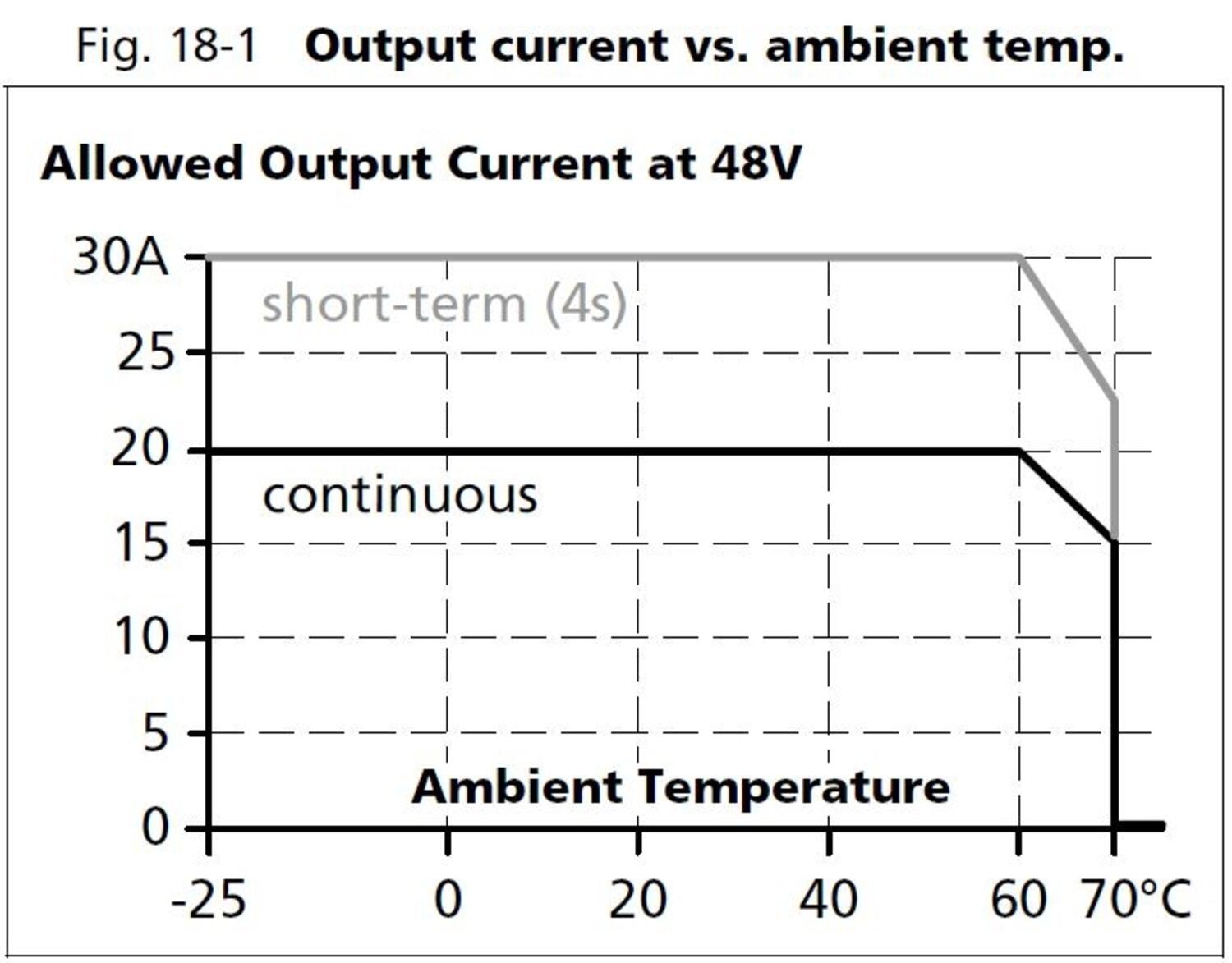

Power Reduction Of 60 To 70 ° C	24 W/°C
Ripple. max	150 mV pp
Series	Dimension Q
Supply Frequency	50-60 ±6 %
Szélesség	125 mm
Teljesítmény	960 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	1,8 kg
Védőanyag	Alumínium

	Változatok	Efficiency At 120 V AC, full load. Typical	Efficiency At 230 V AC. Typical	Hold-up time at 120 V AC, full load. Typical.	Hold-up time at 230 V AC, full load. Typical.	Input voltage AC	Input voltage ac min	Input voltage range	Inrush current at 120 V ac typical	Inrush current at 230 V ac typical	Jóváhagyások	Lifetime at 120 V ac, full load and +40 ° C	Lifetime at 230 V ac, full load and +40 ° C	MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	Power Consumption At 120 V AC	Power Consumption At 230 V AC	Power Factor at 120 V AC, full load. Typical	Power Factor at 230 V AC, full load. Typical	Tömeg	Ár
	PSU 200-240V ac I/P 48V dc 20A 960W O/P Cikkszám QS40.484 Másolva		94,2 %		30 ms	200-240 V	170 V AC			14 A	ABS, CB, CE, CSA, GL, UL		65000 h	392000 h		4,6 A		0,96	1,8 kg
	PSU 100-240V ac I/P 48V dc 20A 960W O/P Cikkszám QS40.481 Másolva	93,9 %	93,9 %	27 ms	27 ms	100-240 V	90 V AC	Wide-range	17 A	11 A	ABS, CB, CE, CSA, EX, GL, IECEx, UL	68000 h	90000 h	300000 h	8,6 A	4,5 A	0,99	0,99	1,9 kg

48-54 V DC, 20 A
