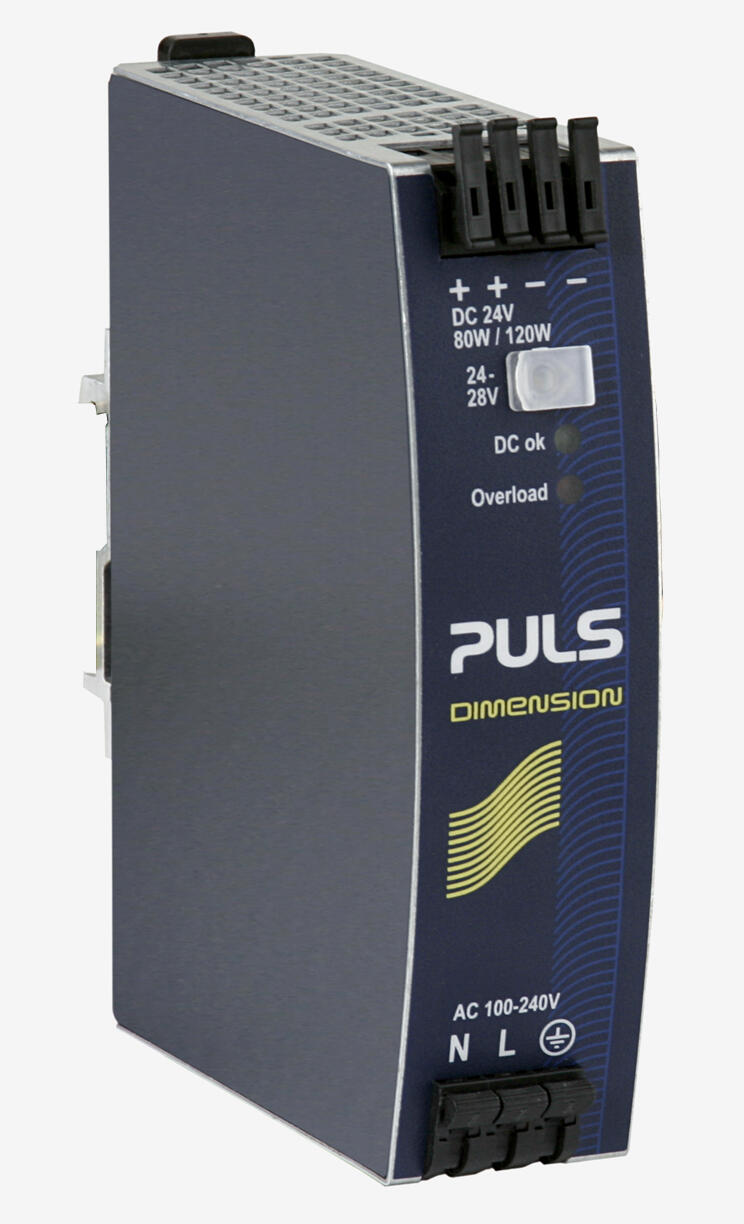

Tápegység 1 fázis, 24VDC Dimension Q széria

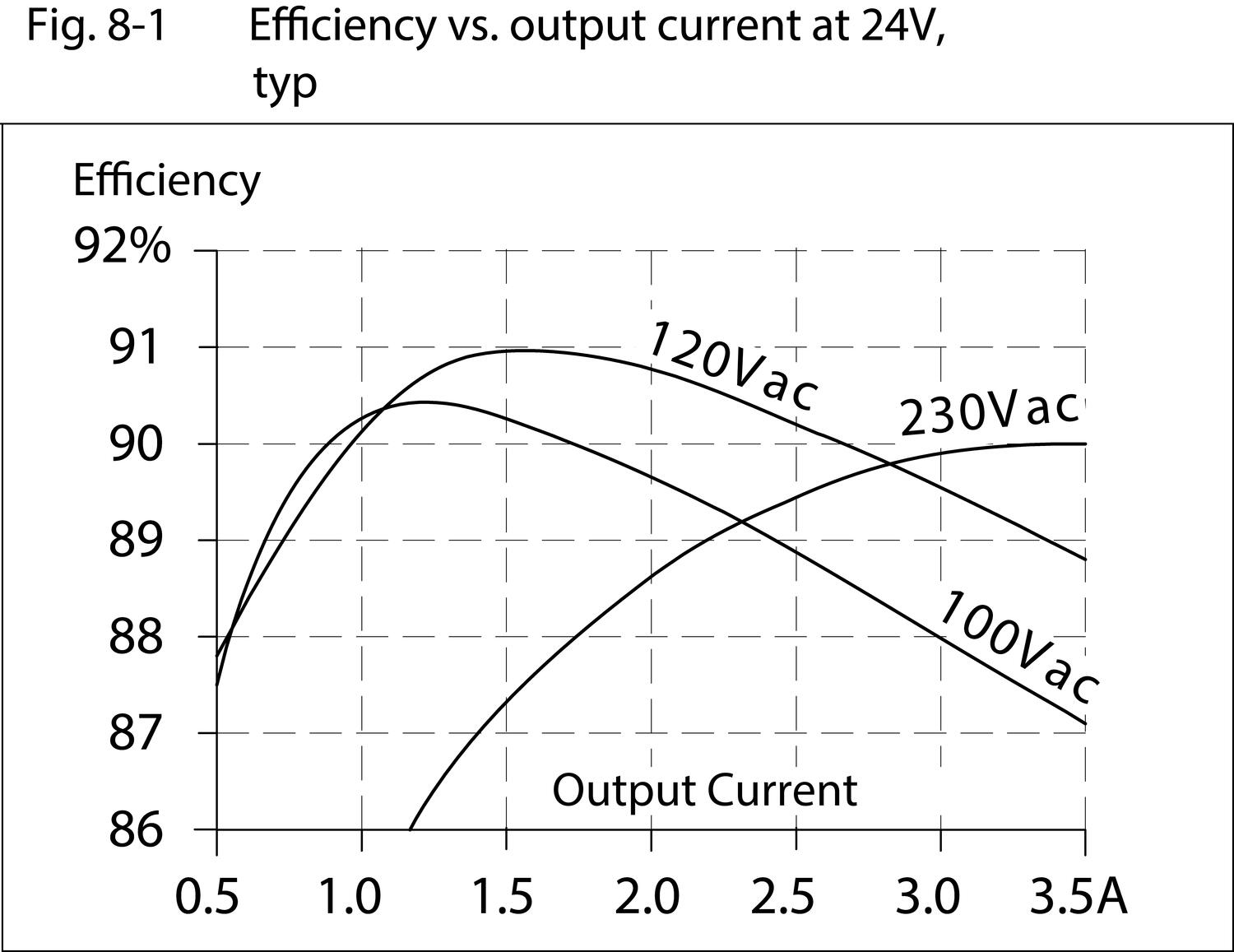

Efficiency At 120 V AC, full load. Typical	88,7 %
Efficiency At 230 V AC, full load. Typical	90 %
Efficiency At 230 V AC. Typical	88,3 %
Fázisok száma	1
Hold-up time at 120 V AC, full load. Typical.	41 ms
Hold-up time at 230 V AC, full load. Typical.	174 ms
Input voltage AC	100-240 V
Input voltage ac max	276 V AC
Input voltage ac min	85 V AC
Input voltage DC	110-150 V
Input voltage dc max	150 V DC
Input voltage dc min	88 V DC
Input voltage range	Wide-range
Inrush current at 120 V ac typical	5 A
Inrush current at 230 V ac typical	10 A
IP-osztály	IP20
Jóváhagyások	ABS, CB, CE, CSA, GL, UL
Lifetime at 120 V ac, full load and +40 ° C	62000 h
Lifetime at 230 V ac, full load and +40 ° C	79000 h

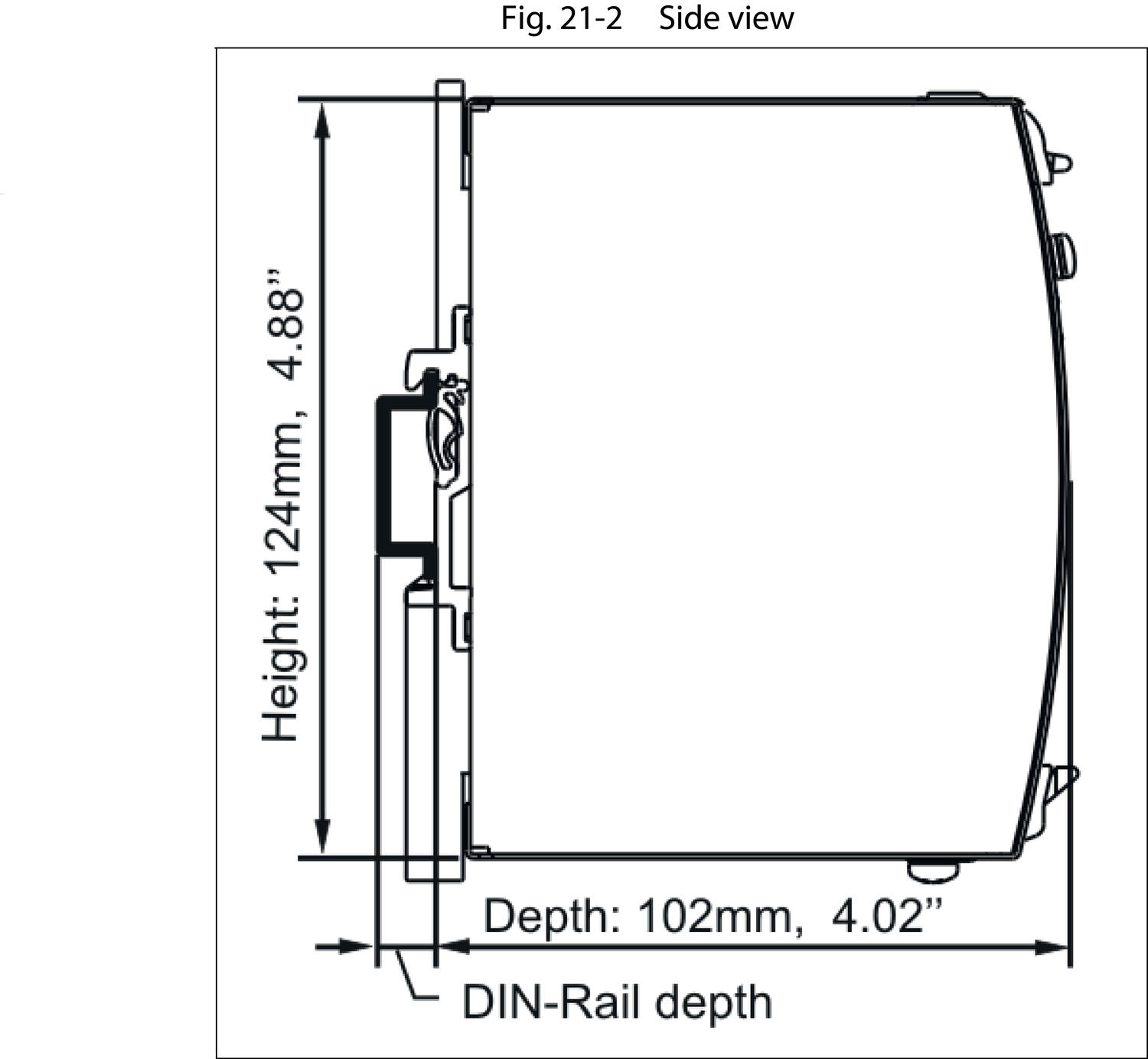

Magasság	124 mm
Mélység	102 mm

MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	1451000 h
Output Current	3,4 A

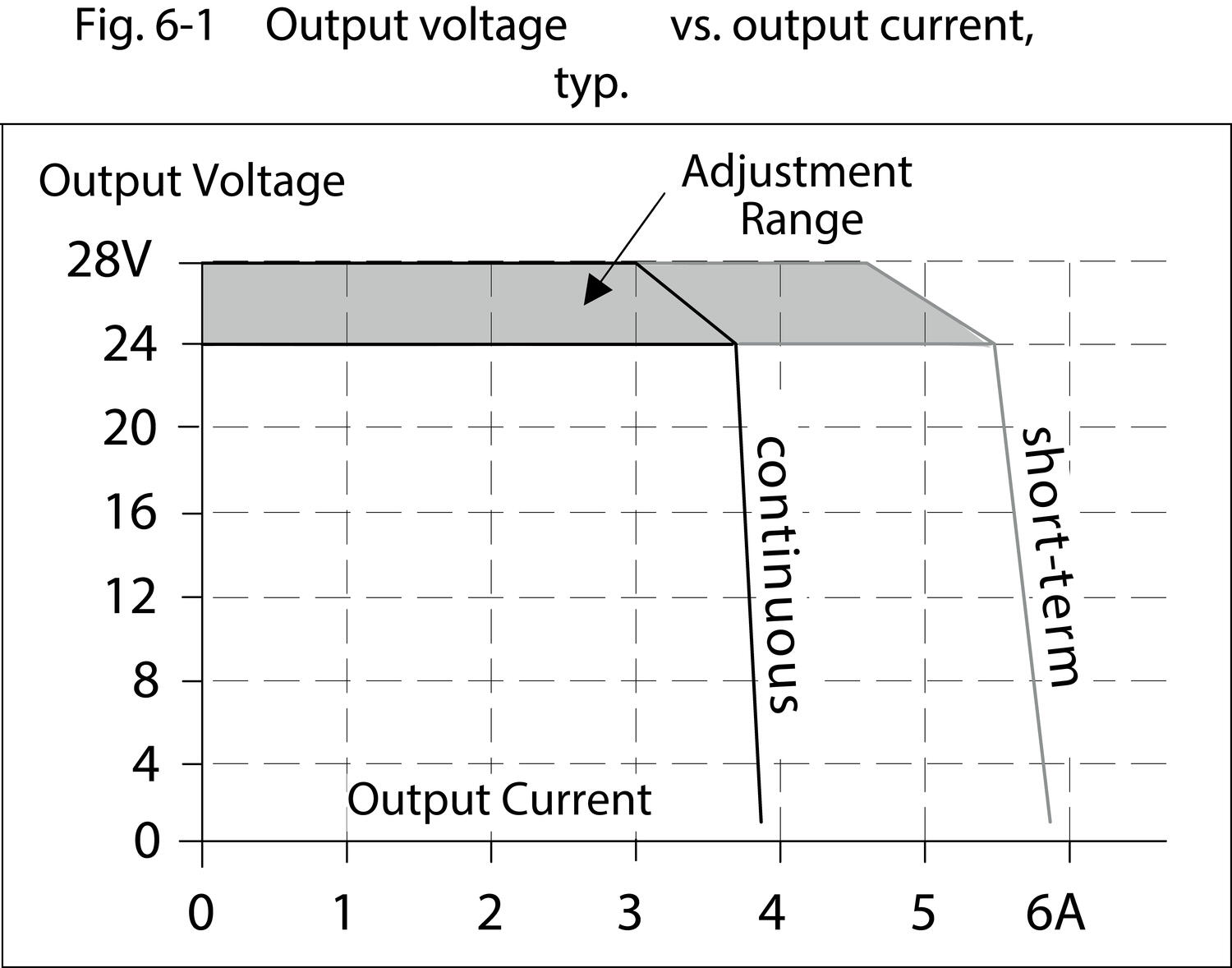

Output voltage	24 V DC
Output voltage max	28 V DC
Output voltage min	24 V DC
Power Consumption At 120 V AC	1,42 A
Power Consumption At 230 V AC	0,82 A
Power Factor at 120 V AC, full load. Typical	0,53
Power Factor at 230 V AC, full load. Typical	0,47

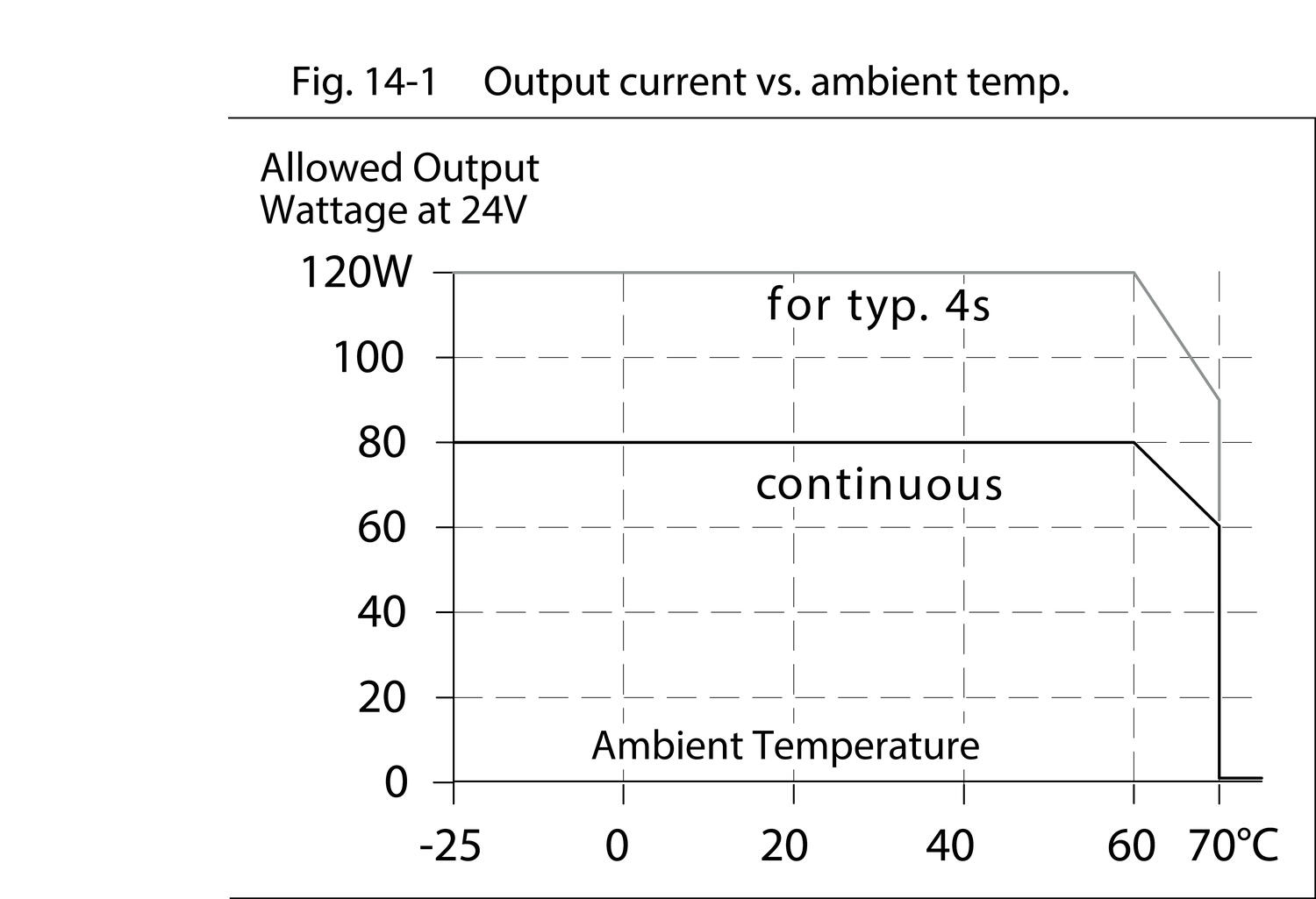

Power Reduction Of 60 To 70 ° C	2 W/°C
Ripple. max	50 mV pp
Series	Dimension Q
Supply Frequency	50-60 ±6 %

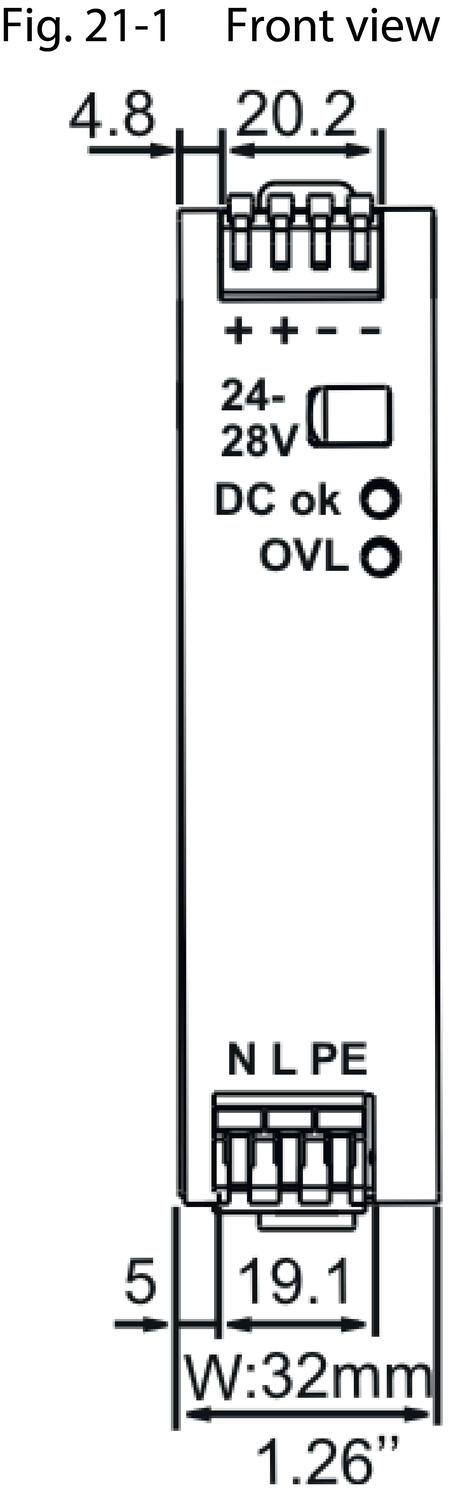

Szélesség	32 mm
Teljesítmény	80 W
Temperature Range Without Derating From	-25 °C
Temperature Range Without Derating To	60 °C
Tömeg	0,44 kg
Védőanyag	Alumínium

Változatok	Active Transient	Conformal coated	DC relay output	Efficiency At 120 V AC, full load. Typical	Efficiency At 230 V AC, full load. Typical	Efficiency At 230 V AC. Typical	Hold-up time at 120 V AC, full load. Typical.	Hold-up time at 230 V AC, full load. Typical.	Input voltage ac max	Input voltage DC	Input voltage dc max	Inrush current at 120 V ac typical	Inrush current at 230 V ac typical	Jóváhagyások	Lifetime at 120 V ac, full load and +40 ° C	Lifetime at 230 V ac, full load and +40 ° C	Mélység	MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C	Output Current	Power Consumption At 120 V AC	Power Consumption At 230 V AC	Power Factor at 120 V AC, full load. Typical	Power Factor at 230 V AC, full load. Typical	Power Reduction Of 60 To 70 ° C	Szélesség	Teljesítmény	Tömeg
PSU 100-240V ac I/P 24V dc 3.4A 80W O/P Cikkszám QS3.241 Másolva				88,7 %	90 %	88,3 %	41 ms	174 ms	276 V AC	110-150 V	150 V DC	5 A	10 A	ABS, CB, CE, CSA, GL, UL	62000 h	79000 h	102 mm	1451000 h	3,4 A	1,42 A	0,82 A	0,53	0,47	2 W/°C	32 mm	80 W	0,44 kg

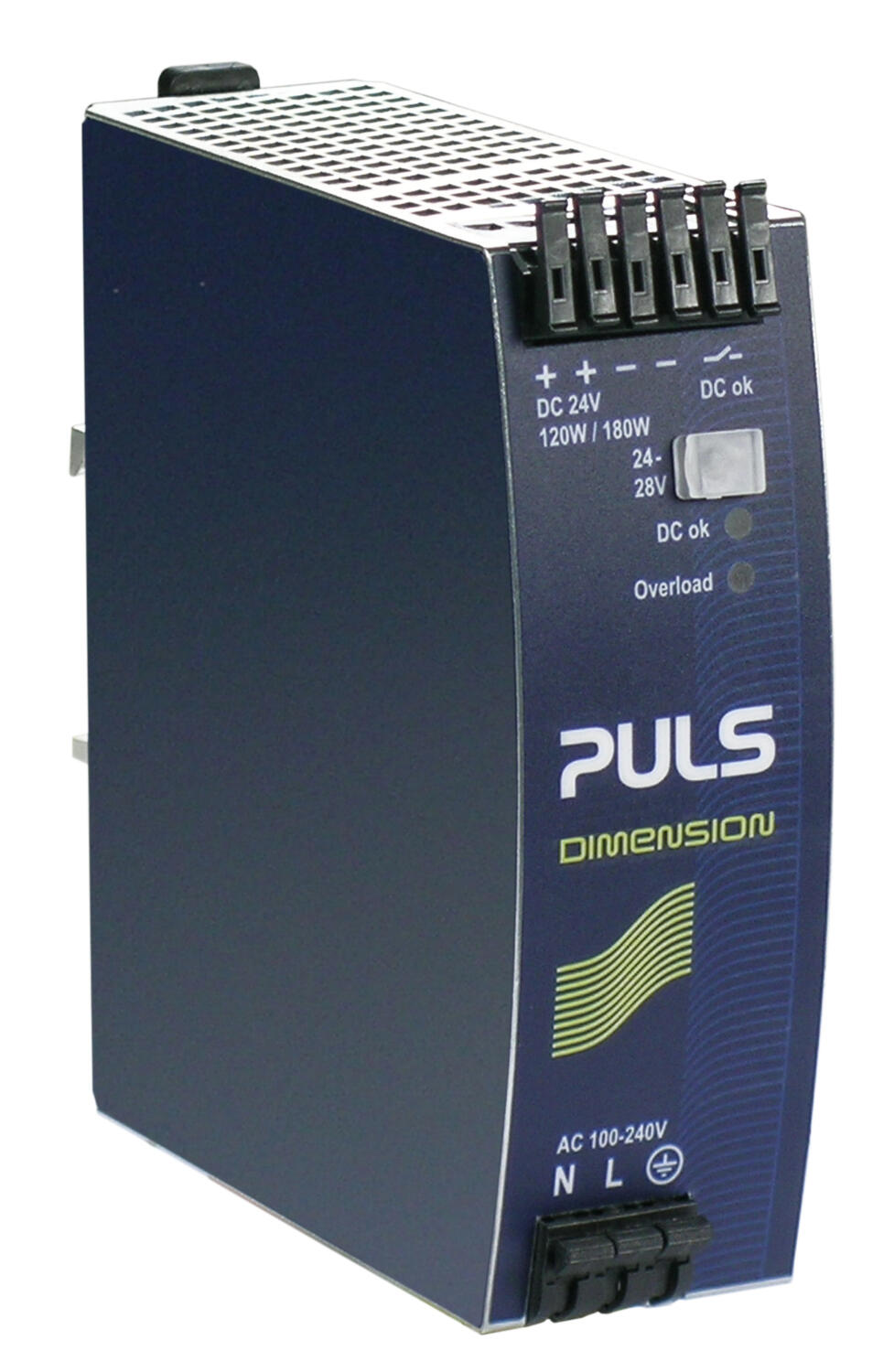

PSU 100-240V ac I/P 24V dc 5A 120W O/P Cikkszám QS5.241 Másolva	Igen		Igen	91,6 %	92,7 %	90,3 %	34 ms	65 ms	264 V AC	110-300 V	360 V DC	9 A	11 A	ABS, CB, CE, CSA, GL, UL	70000 h	89000 h	117 mm	831000 h	5 A	1,1 A	0,62 A	0,99	0,91	3 W/°C	40 mm	120 W	0,62 kg
PSU 100-240V ac I/P 24V dc 5A 120W O/P ATEX Cikkszám QS5.241-A1 Másolva	Igen	Igen	Igen	91,6 %	92,7 %	90,3 %	34 ms	65 ms	264 V AC	110-300 V	360 V DC	9 A	11 A	ABS, ATEX, CB, CE, CSA, GL, IECEx, UL	70000 h	89000 h	117 mm	831000 h	5 A	1,1 A	0,62 A	0,99	0,91	3 W/°C	40 mm	120 W	0,62 kg

24-28 V DC, 3,4 A és 5 A
